CPT3C36 Series

Catalog

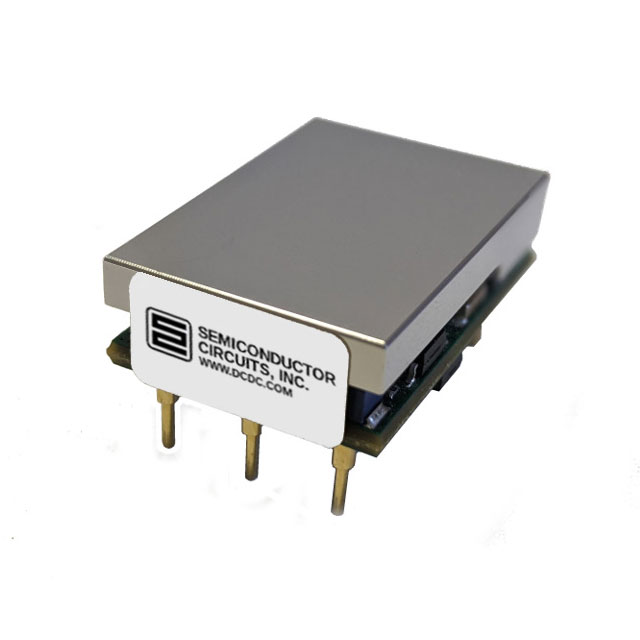

DC DC CONVERTER 15V 45W

Part	Power (Watts)	Package / Case	Efficiency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Control Features	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Semiconductor Circuits, Inc. CPT3C36PB	45 W	Sixteenth Brick	91 %	3 A	1	2250 VDC	Through Hole	ITE (Commercial)	72 V	15 V	Active High Enable	CSA TUV UL	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	Sixteenth Brick	-40 °C	85 °C	Adjustable Output Baseplate Remote On/Off Remote Sense	18 V	Isolated Module
Semiconductor Circuits, Inc. CPT3C36N	45 W	Sixteenth Brick	91 %	3 A	1	2250 VDC	Through Hole	ITE (Commercial)	72 V	15 V	Active Low Enable	CSA TUV UL			33 mm			22.9 mm	Sixteenth Brick	-40 °C	85 °C	Adjustable Output Remote On/Off Remote Sense	18 V	Isolated Module	9.5 mm	0.37 in	0.9 in	1.3 in
