PRPC018 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 18POS 2.54MM
| Part | Contact Finish Thickness - Post | Style | Contact Type | Contact Finish - Post | Fastening Type | Insulation Height | Insulation Height | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Overall Contact Length [x] | Overall Contact Length [x] | Material Flammability Rating | Shrouding | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Insulation Material | Number of Rows | Number of Positions | Number of Positions Loaded | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Termination | Contact Finish - Mating | Connector Type | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

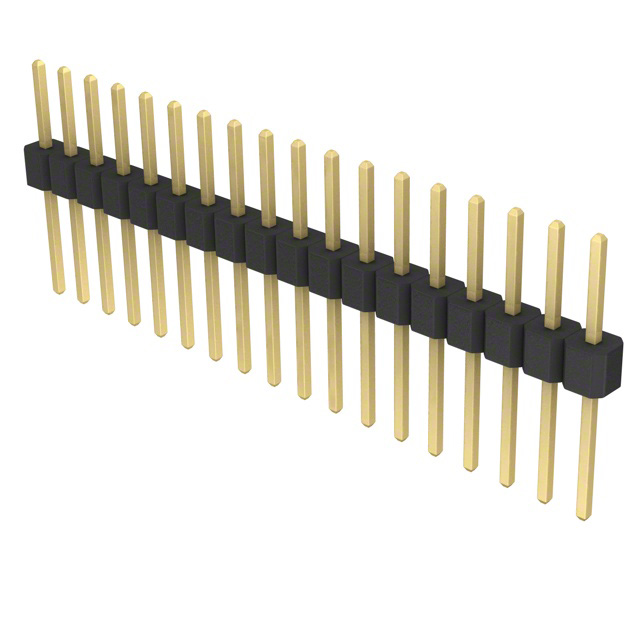

 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Through Hole | Brass | -40 C | 105 ░C | Flash | 13.63 mm | 0.537 in | UL94 V-0 | Unshrouded | 3 A | 8.08 mm | 0.318 in | Polybutylene Terephthalate (PBT) | 1 | 18 | All | Square | 0.1 " | 2.54 mm | 3.05 mm | 0.12 in | Black | Solder | Gold | Header Breakaway | ||||||
 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Through Hole | Brass | -40 C | 105 ░C | Flash | 16.47 mm | 0.648 in | UL94 V-0 | Unshrouded | 3 A | 5.84 mm | 0.23 in | Polybutylene Terephthalate (PBT) | 1 | 18 | All | Square | 0.1 " | 2.54 mm | 8.13 mm | 0.32 in | Black | Solder | Gold | Header Breakaway | ||||||

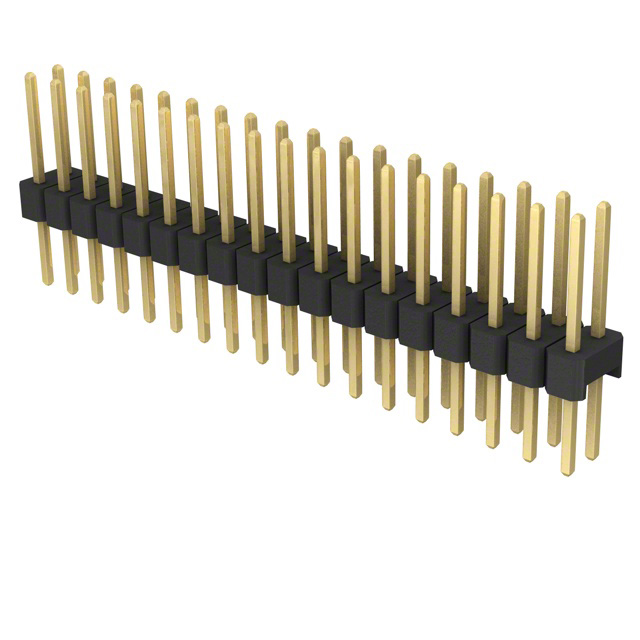

 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Through Hole | Brass | -40 C | 105 ░C | Flash | UL94 V-0 | Unshrouded | 3 A | 8.08 mm | 0.318 in | Polybutylene Terephthalate (PBT) | 36 | All | Square | 0.1 " | 2.54 mm | 5.58 mm | 0.22 in | Black | Solder | Gold | Header Breakaway | 2 | 0.1 in | 2.54 mm | 0.637 in | 16.17 mm | ||||
 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Through Hole | Brass | -40 C | 105 ░C | Flash | 13.63 mm | 0.537 in | UL94 V-0 | Unshrouded | 3 A | 8.08 mm | 0.318 in | Polybutylene Terephthalate (PBT) | 36 | All | Square | 0.1 " | 2.54 mm | 3.05 mm | 0.12 in | Black | Solder | Gold | Header Breakaway | 2 | 0.1 in | 2.54 mm | ||||

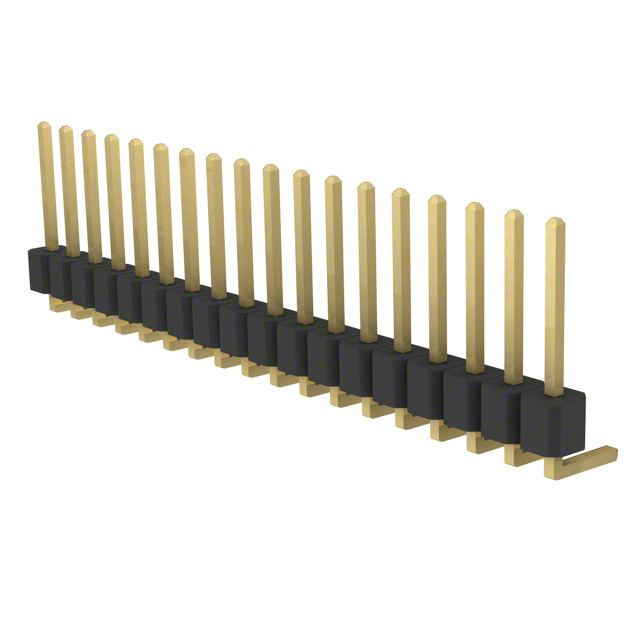

 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Right Angle Through Hole | Brass | -40 C | 105 ░C | Flash | UL94 V-0 | Unshrouded | 3 A | 8.08 mm | 0.318 in | Polybutylene Terephthalate (PBT) | 1 | 18 | All | Square | 0.1 " | 2.54 mm | 3.05 mm | 0.12 in | Black | Solder | Gold | Header Breakaway | ||||||||
 Sullins Connector Solutions | Flash | Board to Board Cable | Male Pin | Gold | Push-Pull | 0.098 " | 2.5 mm | Through Hole | Brass | -40 C | 105 ░C | Flash | UL94 V-0 | Unshrouded | 3 A | 5.84 mm | 0.23 in | Polybutylene Terephthalate (PBT) | 36 | All | Square | 0.1 " | 2.54 mm | 5.84 mm | 0.23 " | Black | Solder | Gold | Header Breakaway | 2 | 0.1 in | 2.54 mm | 14.18 mm | 0.558 in |
