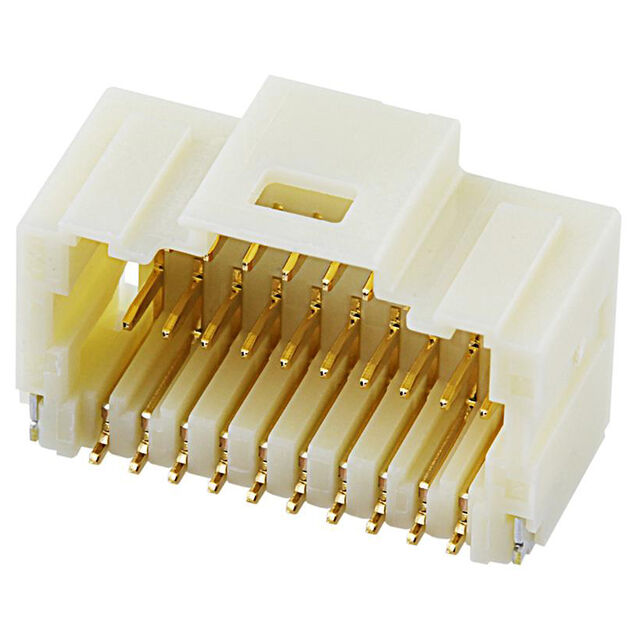

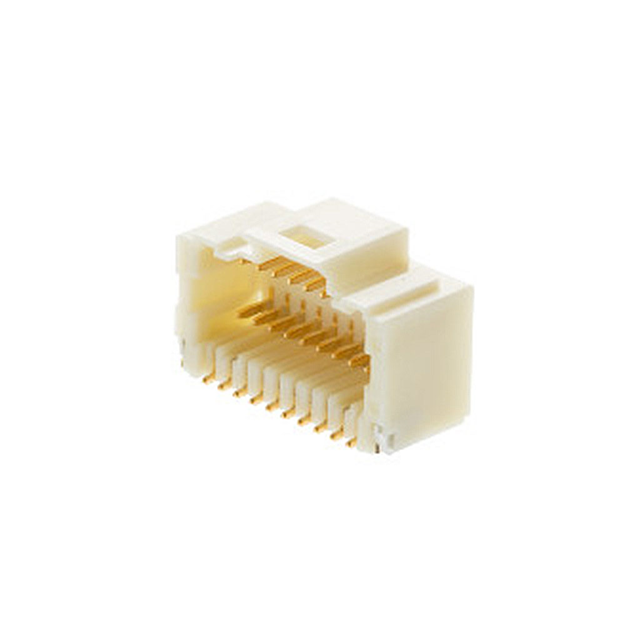

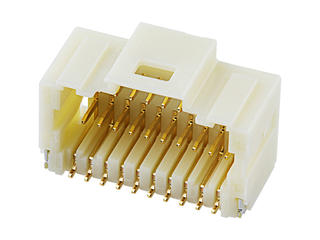

1.00mm Pitch, Pico-Clasp PCB Header, Dual Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 20 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Dual Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 20 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Dual Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 20 Circuits, Natural
| Part | Material Flammability Rating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Material | Contact Finish - Mating | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Positions | Features | Insulation Height | Insulation Height | Termination | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Connector Type | Insulation Material | Voltage Rating | Applications | Style | Number of Positions Loaded | Number of Rows | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | Gold | 0.039 in | 1 mm | Rectangular | Phosphor Bronze | Gold | Varies by Wire Gauge | 4.02 µin | 0.102 µm | Friction Lock | 0.105 in | 2.66 mm | 15 µin | 0.38 µm | Surface Mount Right Angle | 30 | Solder Retention | 8.25 mm | 0.325 in | Solder | Natural | -40 °C | 105 ░C | Male Pin | Header | Nylon Polyamide (PA) | 50 V | Automotive General Purpose Industrial Medical | Board to Cable/Wire | All | 2 | Shrouded - 4 Wall |
 Molex | UL94 V-0 | Gold | 0.039 in | 1 mm | Rectangular | Phosphor Bronze | Gold | Varies by Wire Gauge | 4.02 µin | 0.102 µm | Friction Lock | 0.105 in | 2.66 mm | 15 µin | 0.38 µm | Surface Mount Right Angle | 20 | Solder Retention | 8.25 mm | 0.325 in | Solder | Natural | -40 °C | 105 ░C | Male Pin | Header | Nylon Polyamide (PA) | 50 V | Automotive General Purpose Industrial Medical | Board to Cable/Wire | All | 2 | Shrouded - 4 Wall |
