MQ1238 Series

Catalog

FAN AXIAL 120X38MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Width [y]	Bearing Type	Fan Type	Air Flow	Air Flow	Termination	Weight	Weight	Voltage - Rated	Features	Noise	RPM	Size / Dimension [z]	Size / Dimension [x]

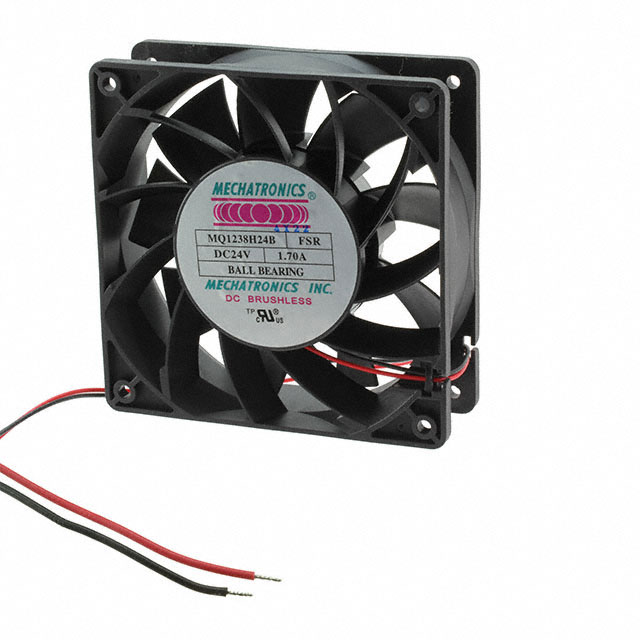

Mechatronics Fan Group MQ1238H24B-FSR	Polybutylene Terephthalate (PBT)	1.7 A	336.3 Pa	1.35 in H2O	CE cUL TUV UL	38 mm	Ball	Tubeaxial	6.33 m³/min	226 CFM	2 Wire Leads	0.772 lb	350.17 g	24 VDC	Thermal Overload Protector (TOP)	65 dB	5000 RPM	120 mm	120 mm
Mechatronics Fan Group MQ1238H12B1+6-FSR	Polybutylene Terephthalate (PBT)	3.6 A	336.3 Pa	1.35 in H2O	CE cUL TUV UL	38 mm	Ball	Tubeaxial	6.33 m³/min	226 CFM	4 Wire Leads	0.772 lb	350.17 g	12 VDC	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	65 dB	5000 RPM	120 mm	120 mm
