2834011 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

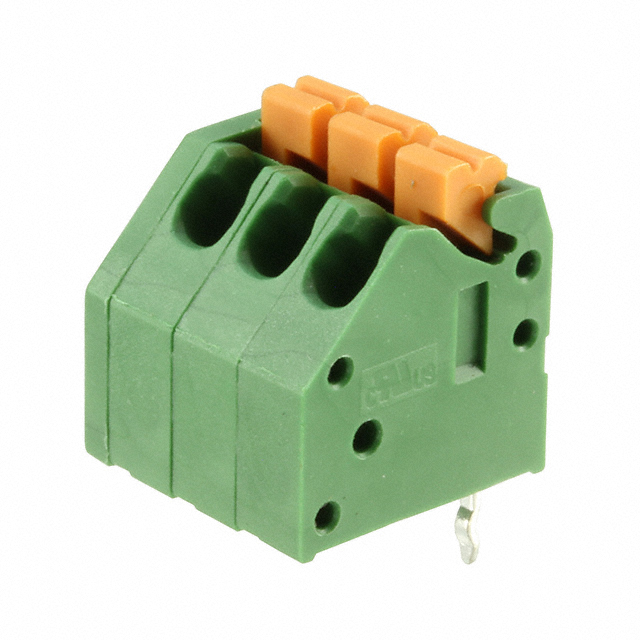

TERM BLK 3P TOP ENTRY 3.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material - Plating | Wire Termination | Positions Per Level | Color | Voltage | Mating Orientation | Number of Levels | Mounting Type | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 14 AWG | 20 AWG | Copper Alloy - Tin Plated | Push-In Spring Screwless - Leg Spring | 3 | Green | 300 V | Vertical with Board | 1 | Kinked Pin Through Hole | 6 A |
