180464 Series

Catalog

250 FLAG FASTON REC

Part	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Contact Material	Gender	Tab Width	Tab Width	Insulation	Termination	Terminal Type	Mounting Type
TE Connectivity Raychem Cable Protection 180464-4	14 AWG	17 AWG	3.81 mm	2.5 mm	0.098 in	0.15 "	0.299 in	7.6 mm	0.032 in	0.81 mm	Brass	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Angled - 90° Flag	Free Hanging (In-Line) Right Angle

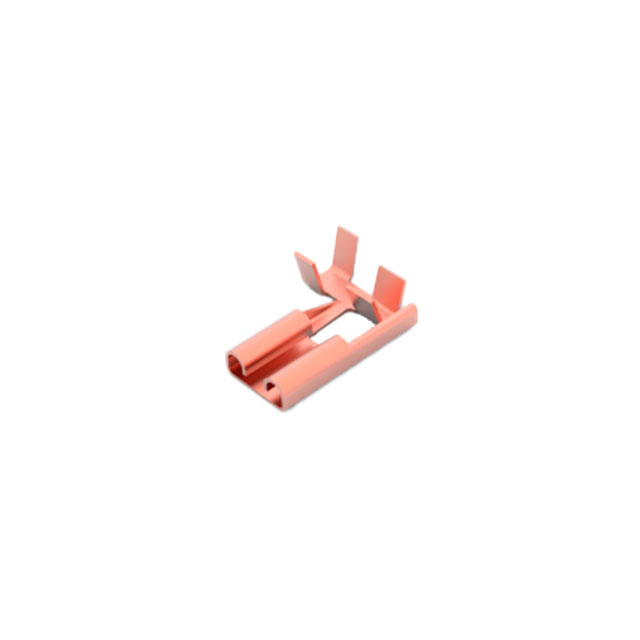

TE Connectivity Raychem Cable Protection 2-180464-4	14 AWG	17 AWG	3.81 mm	2.5 mm	0.098 in	0.15 "	0.299 in	7.6 mm	0.032 in	0.81 mm	Phosphor Bronze	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Angled - 90° Flag	Free Hanging (In-Line) Right Angle
TE Connectivity Raychem Cable Protection 1-180464-2	14 AWG	17 AWG	3.81 mm	2.5 mm	0.098 in	0.15 "	0.299 in	7.6 mm	0.032 in	0.81 mm	Brass	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Angled - 90° Flag	Free Hanging (In-Line) Right Angle
TE Connectivity Raychem Cable Protection 180464-1	14 AWG	17 AWG	3.81 mm	2.5 mm	0.098 in	0.15 "	0.299 in	7.6 mm	0.032 in	0.81 mm	Brass	Female	6.35 mm	0.25 in	Non-Insulated	Crimp	Angled - 90° Flag	Free Hanging (In-Line) Right Angle
