737-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K

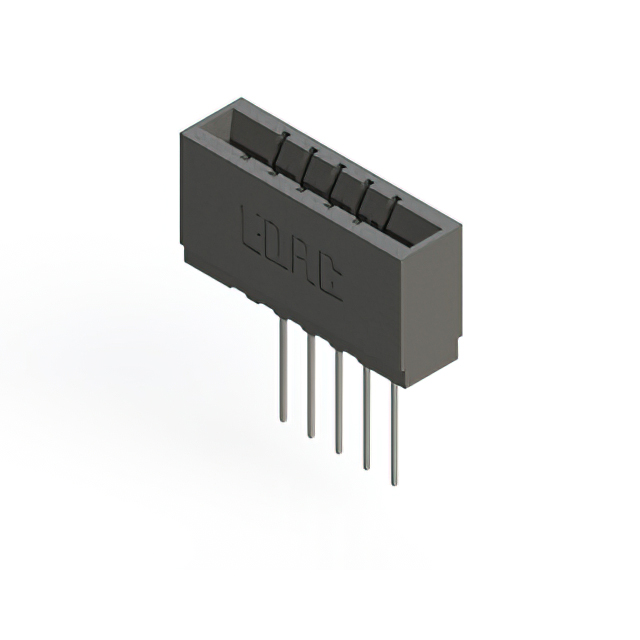

CONN EDGE SGL FMALE 5POS 0.156
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Number of Rows | Number of Positions | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Type | Gender | Color | Read Out | Pitch | Pitch | Card Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 1 | 5 | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | Through Hole | Female | Black | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Copper Alloy |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | 1 | 5 | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | Through Hole | Female | Black | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Copper Alloy |
