NCP1397 Series

Resonant Controller with Integrated High Voltage Drivers

Catalog

Resonant Controller with Integrated High Voltage Drivers

Part	Topology	Control Features	Internal Switch(s)	Package / Case	Package / Case	Supplier Device Package	Voltage - Start Up	Frequency - Switching [Min]	Frequency - Switching [Max]	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fault Protection	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Duty Cycle	Qualification	Grade

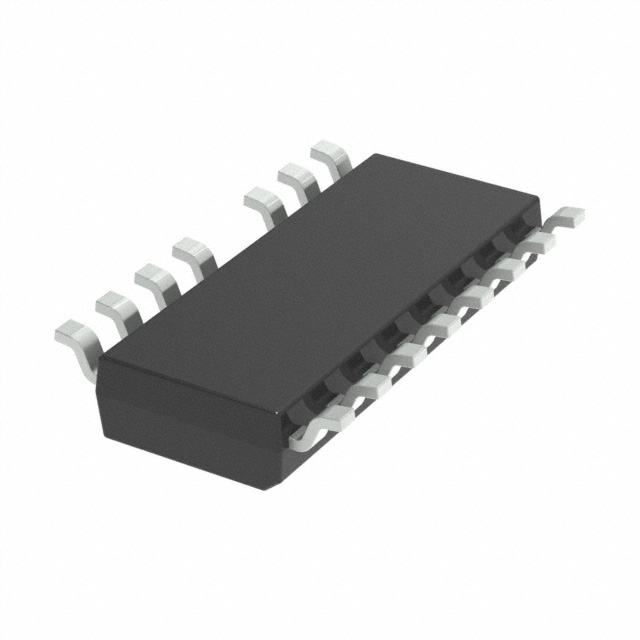

ON Semiconductor NCP1397BDR2G	Half-Bridge	Frequency Control		0.154 " 3.9 mm 15 Leads	16-SOIC	16-SOIC	10.5 V	60 kHz	500 kHz	Isolated	-40 °C	125 ¯C	Surface Mount	Current Limiting Over Temperature Over Voltage Short Circuit	9.5 V	20 V	50 %
ON Semiconductor NCV1397ADR2G	Half-Bridge	Frequency Control		0.154 " 3.9 mm 15 Leads	16-SOIC	16-SOIC	10.5 V	60 kHz	500 kHz	Isolated	-40 °C	125 ¯C	Surface Mount	Current Limiting Over Temperature Over Voltage Short Circuit	9.5 V	20 V	50 %	AEC-Q100	Automotive

Catalog

Resonant Controller with Integrated High Voltage Drivers

Key Features

• Adjustable minimum switching frequency with 3% accuracy

• Brown-out input

• 1 A / 0.5 A Peak Current Sink / Source Drive

• Timer-based OCP input with auto-recovery

• Second latched OCP level

• Adjustable deadtime from 100 ns to 2 us

• Adjustable soft-start

Description

The NCP1397 is a high performance controller that can be utilized in half bridge resonant topologies such as series resonant, parallel resonant and LLC resonant converters. It integrates 600 V gate drivers, simplifying layout and reducing external component count. With its unique architecture, including a 500 kHz Voltage Controlled Oscillator whose control mode permits flexibility when an ORing function is required, the NCP1397 delivers everything needed to build a reliable and rugged resonant mode power supply. The NCP1397 provides a suite of protection features with configurable settings to optimize any application. These include: auto-recovery or fault latch-off, brown-out, open optocoupler, soft-start and short-circuit protection. Deadtime is also adjustable to overcome shoot through current. NCV1397 offers an Automotive certified version (AEC-Q100/PPAP)
