CD631615 Series

Catalog

THYRISTOR MODULE, SERIES CONNECTED, 150 A, 1.6 KV

Part	Voltage - Gate Trigger (Vgt) (Max) [Max] [custom]	Mounting Type	Structure	Voltage - Off State	Number of SCRs, Diodes	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (AV)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]

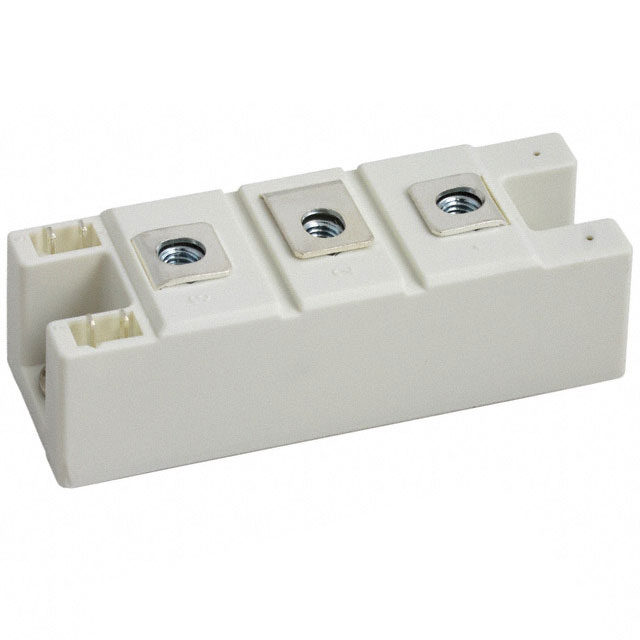

Powerex Inc. CD631615B	2 V	Chassis Mount	Series Connection - All SCRs	1.6 kV	2 SCRs	POW-R-BLOK™ Module	5250 A	5000 A	160 A	150 mA	-40 C	125 °C	235 A	150 mA
