A221Y10V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 10POS STRAIGHT TRGH 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Rows [custom] | Insulation Color | Features | Fastening Type | Contact Type | Mounting Type | Insulation Material | Termination | Contact Material | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Shape | Number of Positions Loaded | Voltage Rating | Contact Finish - Post | Shrouding | Number of Positions | Style | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

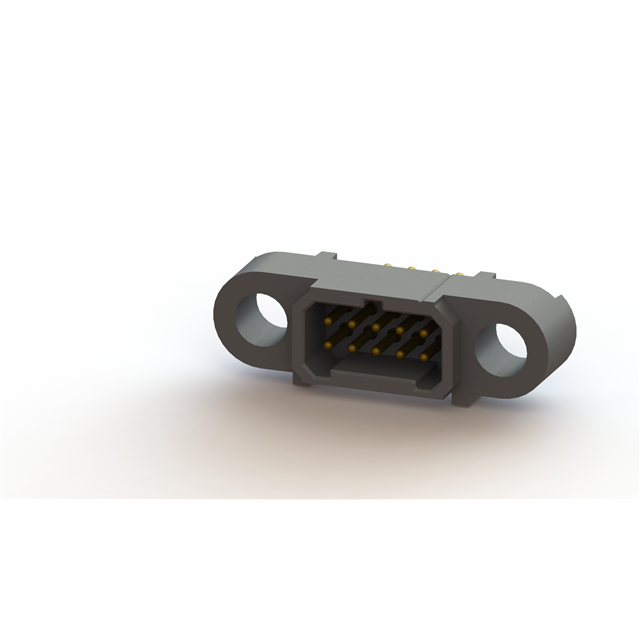

 Nicomatic | 0.15 µm | 5.9 µin | 5.9 µin | 0.15 µm | -65 ░C | 200 °C | UL94 V-0 | 2 | Black | Mating Flange | Push-Pull | Male Pin | Through Hole | Liquid Crystal Polymer (LCP) | Solder | Copper Alloy | Header | 1 mm | 0.039 in | Gold | Circular | All | 600 VAC | Gold | Shrouded - 4 Wall | 10 | Board to Board Cable | 0.039 in | 1 mm | 4.1 mm | 0.161 in | 2.5 A |

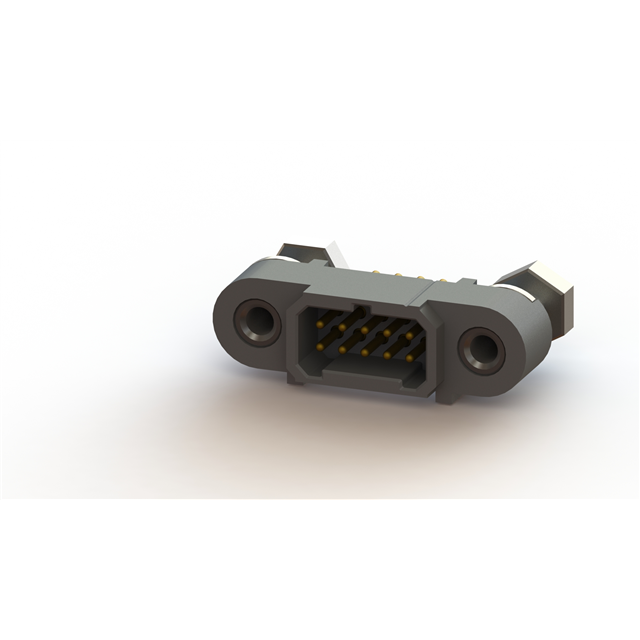

 Nicomatic | 0.15 µm | 5.9 µin | 5.9 µin | 0.15 µm | -65 ░C | 200 °C | UL94 V-0 | 2 | Black | Mating Flange Mounting Flange Mounting Hardware | Male Pin | Through Hole | Liquid Crystal Polymer (LCP) | Solder | Copper Alloy | Header | 1 mm | 0.039 in | Gold | Circular | All | 600 VAC | Gold | Shrouded - 4 Wall | 10 | Board to Board Cable | 0.039 in | 1 mm | 4.1 mm | 0.161 in | 2.5 A |
