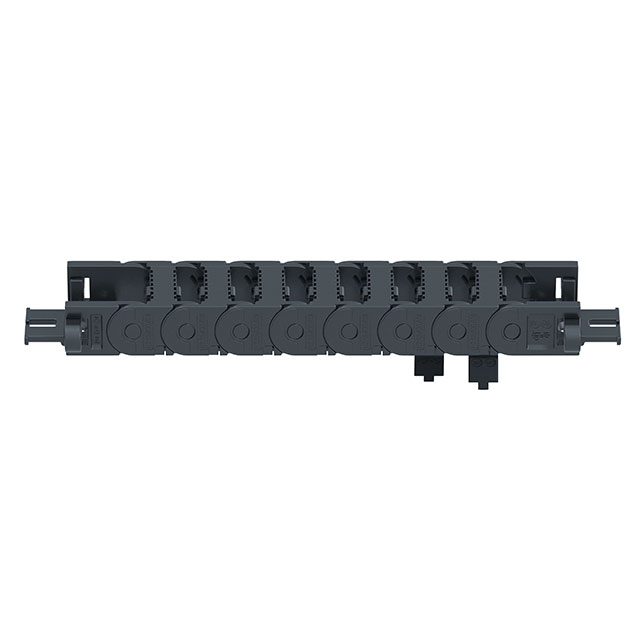

E2I-15 Series

Manufacturer: Igus

Catalog

CABLE CARRIER .76H X .92W 1=1FT

Part	Loading Side	Frame Type	Material	Link Pitch	Link Pitch	Cavity Height	Cavity Height	Outer Width [x]	Outer Width [x]	Outer Height [z]	Outer Height [z]	Cavity Width	Cavity Width	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Bend Radius [Min]	Minimum Bend Radius [Min] [radius]	Outer Width	Outer Width	Cavity Width [y]
Igus E2I-15-16-028-0	Inside and Outside Bend	Open	Igumid G	0.79 in	20.07 mm	14.48 mm	0.57 in	23.37 mm	0.92 in	19.3 mm	0.76 in	0.63 in	16 mm	120 °C	-40 C	27.94 mm	1.1 "
Igus E2I-15-50-028-0	Inside and Outside Bend	Open	Igumid G	0.79 in	20.07 mm	14.48 mm	0.57 in			19.3 mm	0.76 in		50.04 mm	120 °C	-40 C	27.94 mm	1.1 "	57.4 mm	2.26 in	1.97 in
