Schaffner EH/EV-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CMC 44MH 500MA 2LN TH

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]	Package / Case	Number of Lines	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max) [z]
TE Connectivity AMP Connectors EH24-0.5-02-44M	24 mm	0.945 "	24 mm	0.945 "	44 mH 400 Hz	Power Line	100 °C	-25 °C	Through Hole	250 V	21 mm	0.827 in	500 mA	4 PC Pin Horizontal	2	1.25 Ohm
TE Connectivity AMP Connectors EH20-1.0-02-3M9	21 mm	0.827 in	21 mm	0.827 "	3.9 mH	Power Line	100 °C	-25 °C	Through Hole	250 V	18.8 mm	0.74 in	1 A	4 PC Pin Horizontal	2		168 mOhm

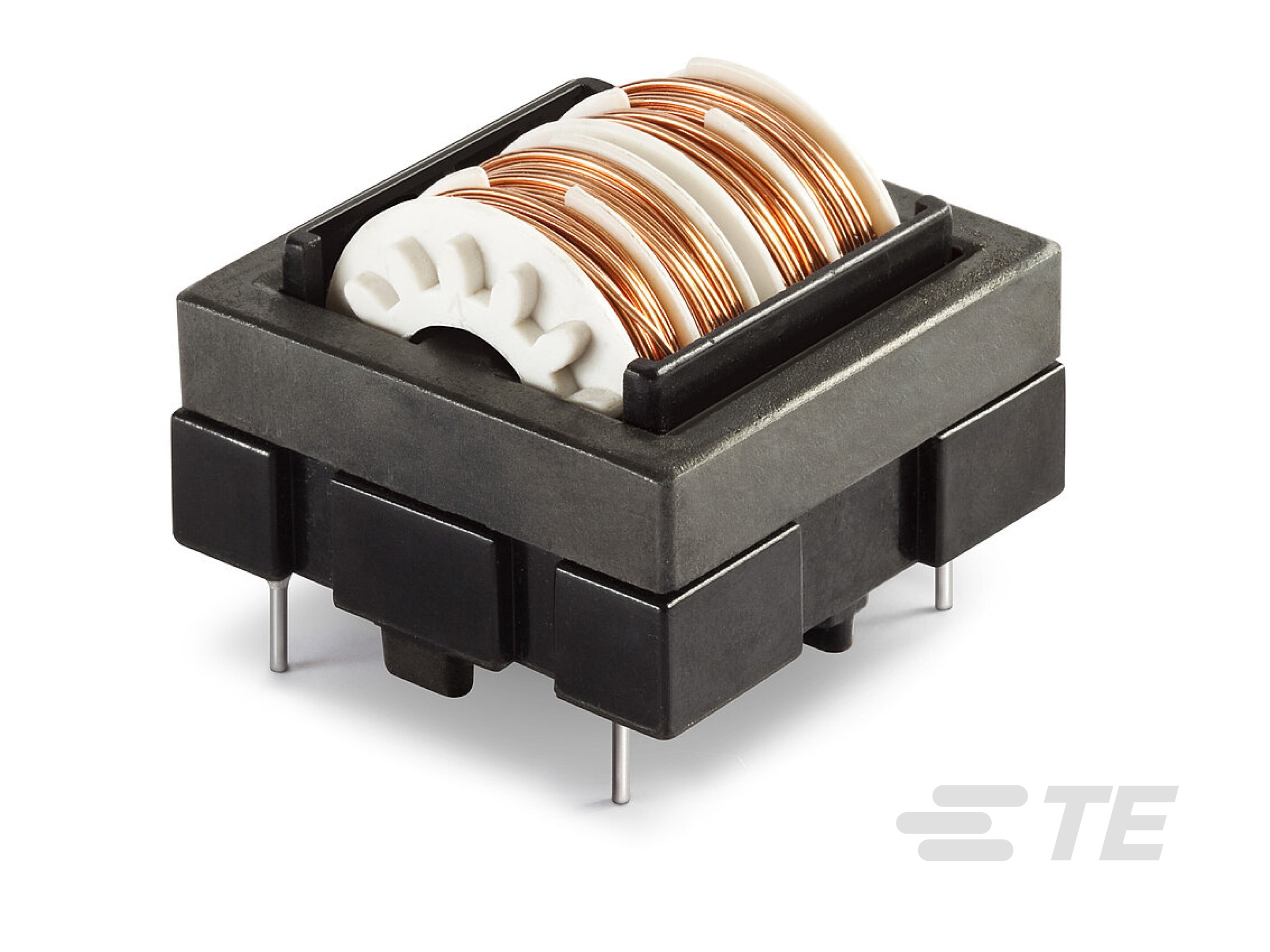

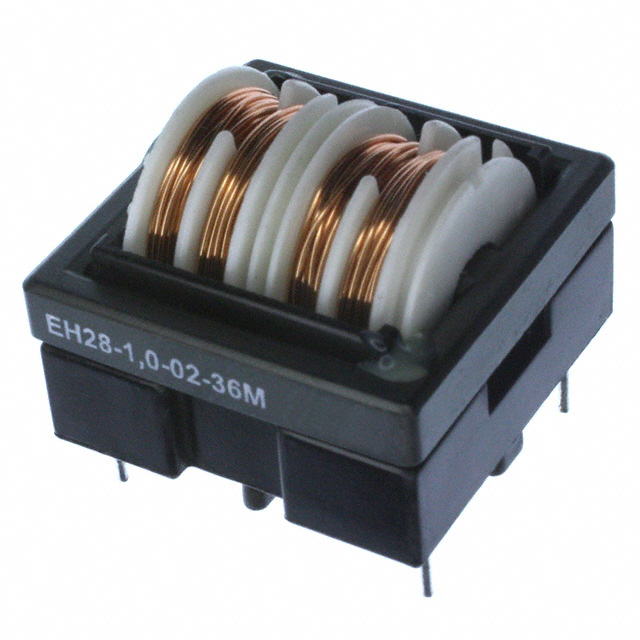

TE Connectivity AMP Connectors EH28-1.0-02-36M	28 mm	1.102 "	28 mm	1.102 "	36 mH 400 Hz	Power Line	100 °C	-25 °C	Through Hole	250 V			1 A	4 PC Pin Horizontal	2	591 mOhm		0.941 in	23.9 mm
TE Connectivity AMP Connectors EV24-4.0-02-0M5	24.6 mm	0.685 in	17.4 mm	0.969 in	400 Hz 500 µH	Power Line	100 °C	-25 °C	Through Hole	250 V	30.1 mm	1.185 in	4 A	Vertical 4 PC Pin	2	16 mOhm
TE Connectivity AMP Connectors EH28-2.0-02-11M	28 mm	1.102 "	28 mm	1.102 "	10 kHz 11 mH	Power Line	100 °C	-25 °C	Through Hole	250 V			2 A	4 PC Pin Horizontal	2	162 mOhm		0.941 in	23.9 mm

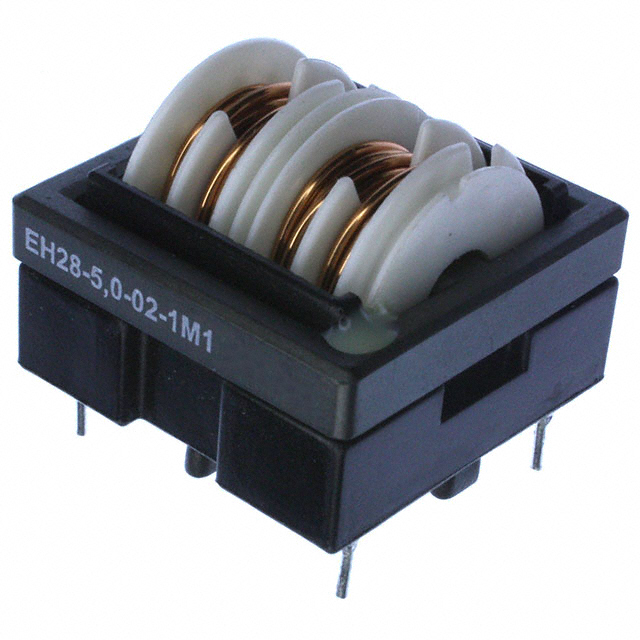

TE Connectivity AMP Connectors EH28-5.0-02-1M1	28 mm	1.102 "	28 mm	1.102 "	1.1 mH 400 Hz	Power Line	100 °C	-25 °C	Through Hole	250 V			5 A	4 PC Pin Horizontal	2	27 mOhm		0.941 in	23.9 mm

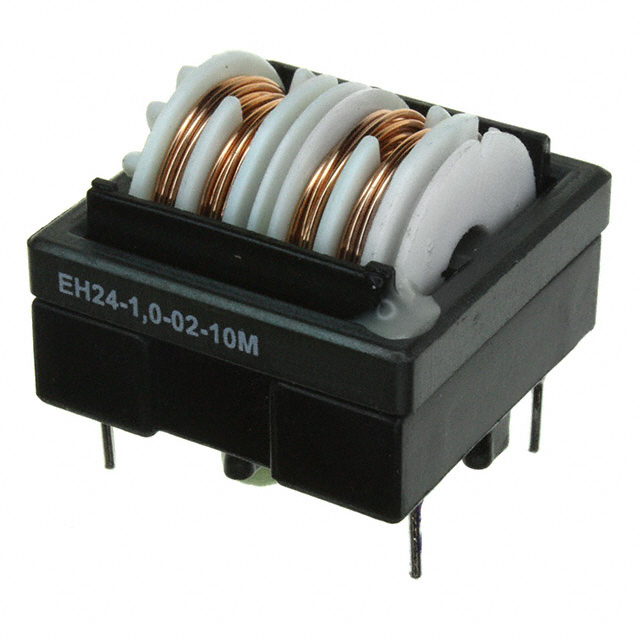

TE Connectivity AMP Connectors EH24-1.0-02-10M	24 mm	0.945 "	24 mm	0.945 "	10 mH 10 kHz	Power Line	100 °C	-25 °C	Through Hole	250 V	21 mm	0.827 in	1 A	4 PC Pin Horizontal	2	244 mOhm
TE Connectivity AMP Connectors EV35-1.0-02-90M	36 mm	0.965 "	24.5 mm	1.417 in	90 mH	Power Line	100 °C	-25 °C	Through Hole	250 V	42.7 mm		1 A	Vertical 4 PC Pin	2	628 mOhm				1.681 in
TE Connectivity AMP Connectors EH28-2.0-02-11M	28 mm	1.102 "	28 mm	1.102 "	10 kHz 11 mH	Power Line	100 °C	-25 °C	Through Hole	250 V			2 A	4 PC Pin Horizontal	2	162 mOhm		0.941 in	23.9 mm
TE Connectivity AMP Connectors EH24-2.0-02-2M5	24 mm	0.945 "	24 mm	0.945 "	2.5 mH	Power Line	100 °C	-25 °C	Through Hole	250 V	21 mm	0.827 in	2 A	4 PC Pin Horizontal	2	62 mOhm
