B3F Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

TACTILE SWITCH, B3F SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 500 GF, 50MA AT 24VDC

Part	Switch Travel	Mechanical Life	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Outline [x]	Outline [y]	Contact Rating @ Voltage	Circuit	Actuator Type	Mounting Type	Switch Function	Illumination	Termination Style	Actuator Height off PCB, Vertical [z]	Features	Actuator Length, Right Angle [x]

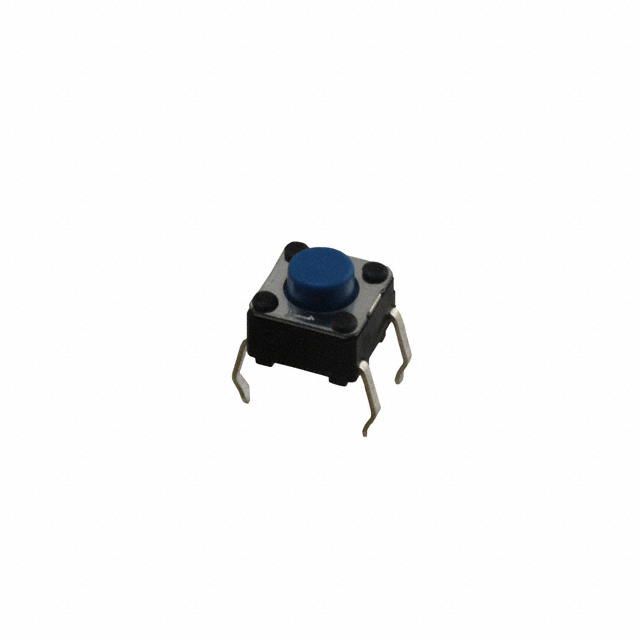

Omron Electronics Inc-EMC Div B3F-1026	0.25 mm	50000 Cycles	Top Actuated	-25 °C	70 °C	0.5 kgf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	5 mm
Omron Electronics Inc-EMC Div B3F-1105	0.25 mm	100000 Cycles	Top Actuated	-25 °C	70 °C	260 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	4.3 mm	Grounding Pin

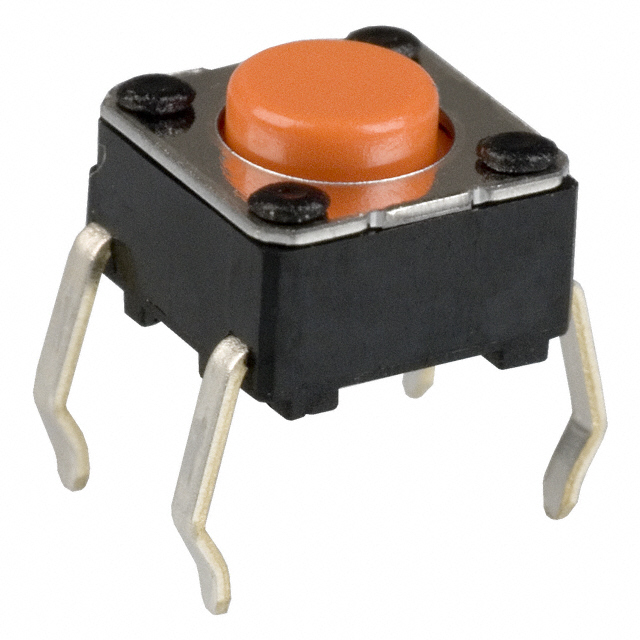

Omron Electronics Inc-EMC Div B3F-1005	0.25 mm	100000 Cycles	Top Actuated	-25 °C	70 °C	260 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	4.3 mm

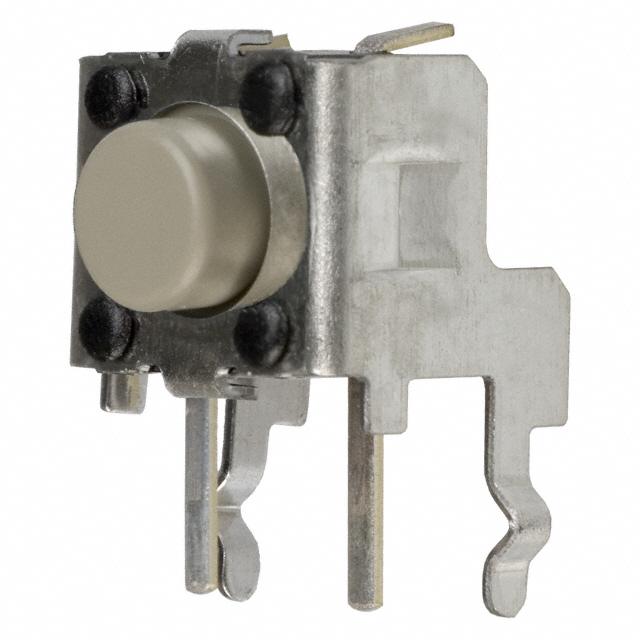

Omron Electronics Inc-EMC Div B3F-3122	0.25 mm	300000 Cycles	Side Actuated	-25 °C	70 °C	150 gf	7.3 mm	6.25 mm	0.05 A 24 VDC	SPST-NO	Standard	Right Angle Through Hole	Off-Mom	Non-Illuminated	PC Pin		Grounding Pin	3.85 mm

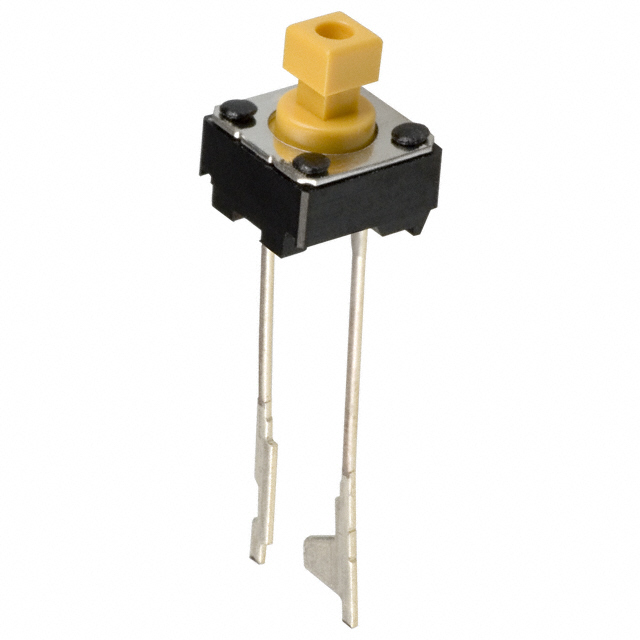

Omron Electronics Inc-EMC Div B3F-6052	0.25 mm	300000 Cycles	Top Actuated	-25 °C	70 °C	150 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Plunger for Cap	Through Hole	Off-Mom	Non-Illuminated	PC Pin	7.3 mm

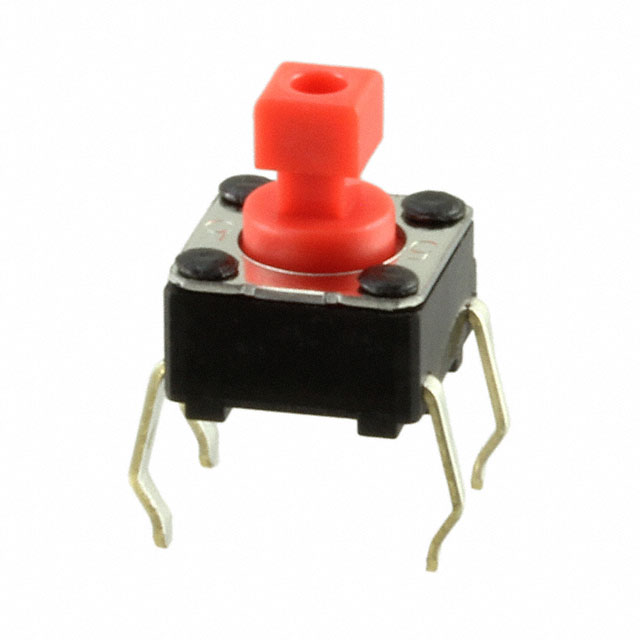

Omron Electronics Inc-EMC Div B3F-1056	0.25 mm	50000 Cycles	Top Actuated	-25 °C	70 °C	0.5 kgf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Plunger for Cap	Through Hole	Off-Mom	Non-Illuminated	PC Pin	7.3 mm

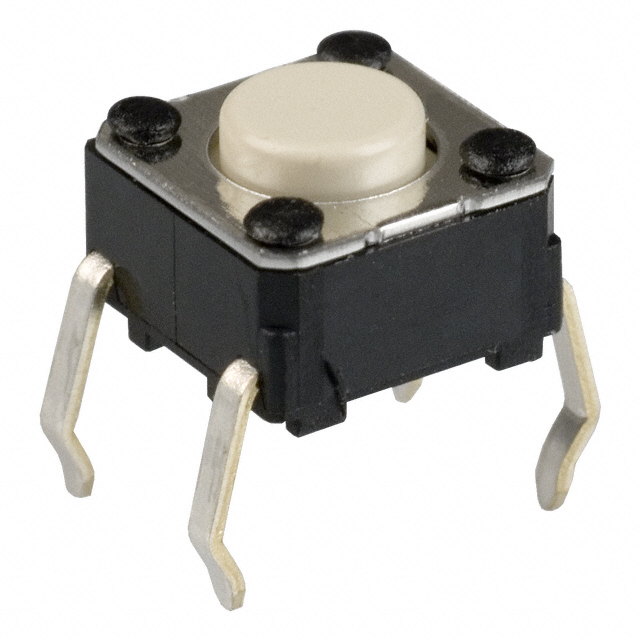

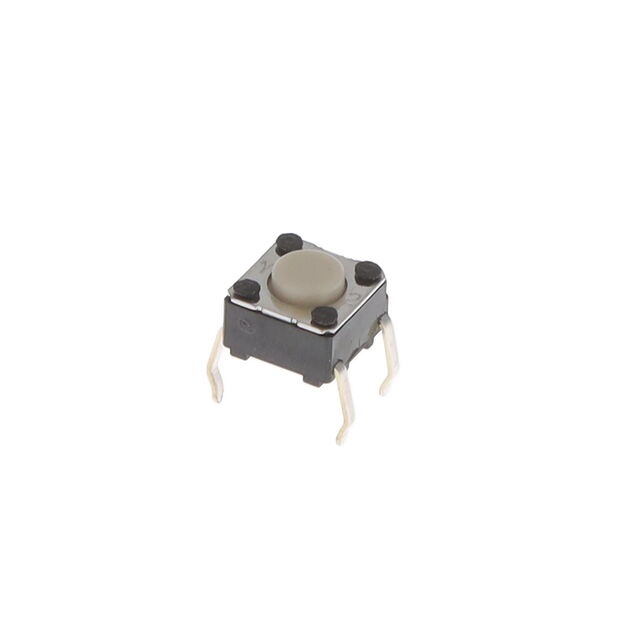

Omron Electronics Inc-EMC Div B3F-1000	0.25 mm	1000000 Cycles	Top Actuated	-25 °C	70 °C	100 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	4.3 mm

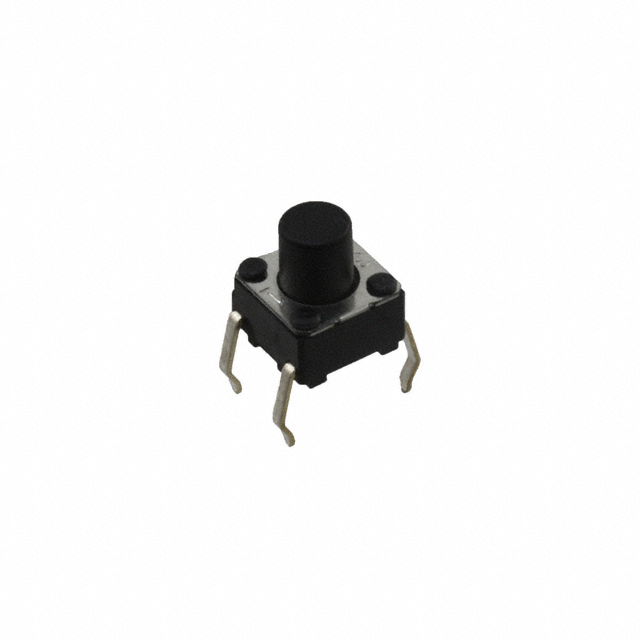

Omron Electronics Inc-EMC Div B3F-1060	0.25 mm	1000000 Cycles	Top Actuated	-25 °C	70 °C	100 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	7 mm

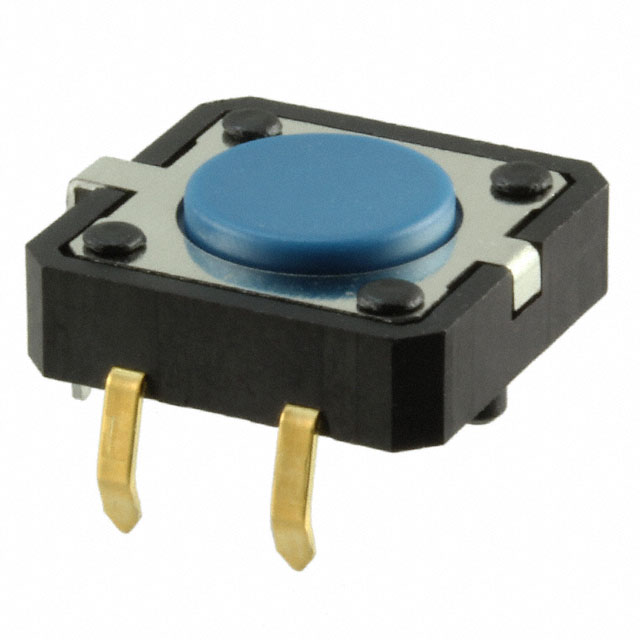

Omron Electronics Inc-EMC Div B3F-5101	0.3 mm	10000000 Cycles	Top Actuated	-25 °C	70 °C	130 gf	12 mm	12 mm	0.05 A 24 VDC	SPST-NO	Standard	Through Hole	Off-Mom	Non-Illuminated	PC Pin	4.3 mm	Grounding Pin

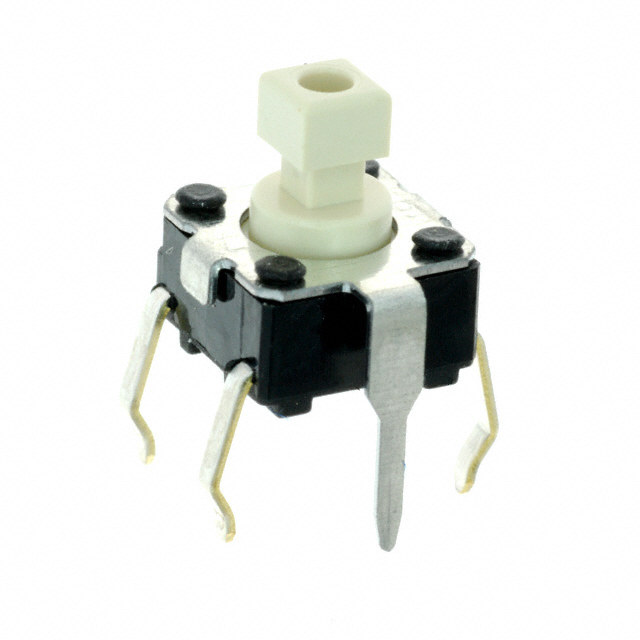

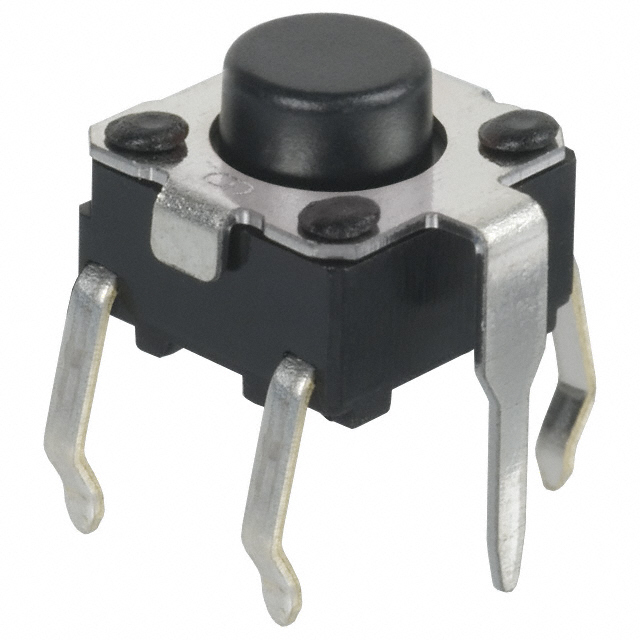

Omron Electronics Inc-EMC Div B3F-1150	0.25 mm	1000000 Cycles	Top Actuated	-25 °C	70 °C	100 gf	6 mm	6 mm	0.05 A 24 VDC	SPST-NO	Plunger for Cap	Through Hole	Off-Mom	Non-Illuminated	PC Pin	7.3 mm	Grounding Pin
