35SVPD Series

Catalog

CAP ALUMINUM POLYMER 47UF 35VDC 20%( 10 X 12.6MM) SMD 0.03 OHM 1.15A 2000H 125°C T/R

Part	Voltage - Rated	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Type	Tolerance	Capacitance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)

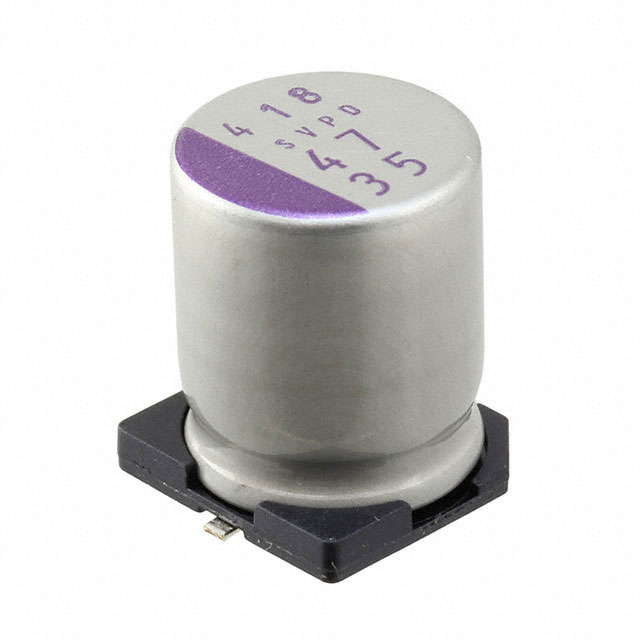

Panasonic Electronic Components 35SVPD47M	35 V	General Purpose	0.406 "	0.406 in	10.3 mm	10.3 mm	Polymer	20 %	47 µF	2000 Hrs	30 mOhms	57.5 mA	0.5 in	12.7 mm	Surface Mount	1.15 A	-55 C	125 °C	Radial Can - SMD	0.394 in	10 mm

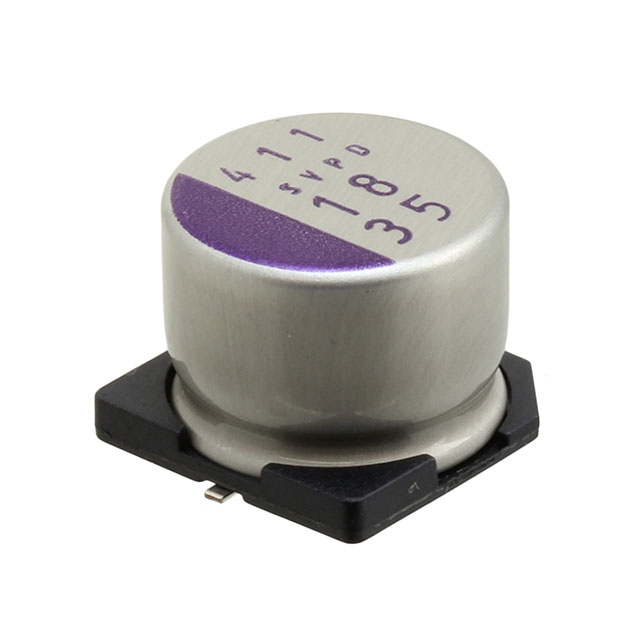

Panasonic Electronic Components 35SVPD18M	35 V	General Purpose	0.406 "	0.406 in	10.3 mm	10.3 mm	Polymer	20 %	18 µF	2000 Hrs	60 mOhms	27.5 mA	0.315 in	8 mm	Surface Mount	100 kHz 550 mA	-55 C	125 °C	Radial Can - SMD	0.394 in	10 mm

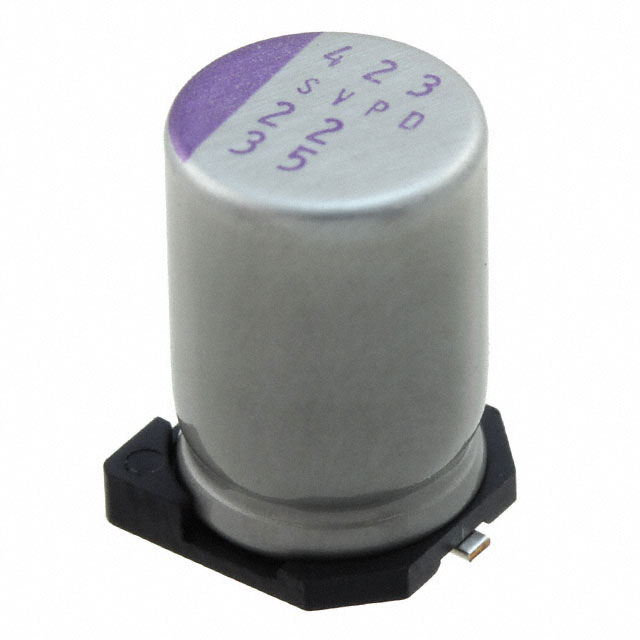

Panasonic Electronic Components 35SVPD22M	35 V	General Purpose	0.327 in	0.327 in	8.3 mm	8.3 mm	Polymer	20 %	22 µF	2000 Hrs	50 mOhms	35 mA	0.472 in		Surface Mount	700 mA	-55 C	125 °C	Radial Can - SMD	0.315 in	8 mm	12 mm
