AON5802 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

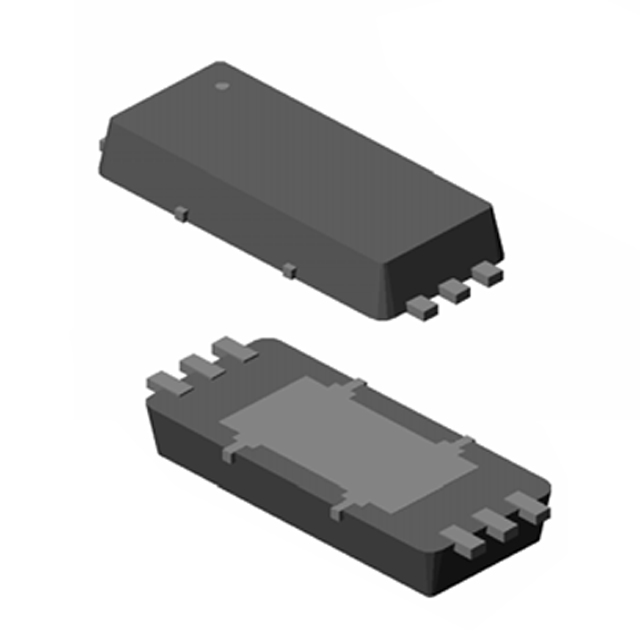

MOSFET 2N-CH 30V 7.2A 6DFN
| Part | Configuration | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Input Capacitance (Ciss) (Max) @ Vds | Technology | Rds On (Max) @ Id, Vgs | Package / Case | Drain to Source Voltage (Vdss) | Mounting Type | Gate Charge (Qg) (Max) @ Vgs [Max] | Power - Max [Max] | Supplier Device Package | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | 2 N-Channel (Dual) Common Drain | 7.2 A | 150 °C | -55 °C | 1150 pF | MOSFET (Metal Oxide) | 19 mOhm | 6-WFDFN Exposed Pad | 30 V | Surface Mount | 24 nC | 1.6 W | 6-DFN-EP (2x5) | 1.5 V |
