S2B-ZR Series

Catalog

CONN HEADER R/A 2POS 1.5MM

Part	Number of Positions	Insulation Material	Contact Type	Number of Rows	Connector Type	Mounting Type	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Shrouding	Material Flammability Rating	Termination	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Number of Positions Loaded	Style	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Features
JST Sales America Inc. S2B-ZR-3.4	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Male Pin	1	Header	Right Angle Through Hole	50 V	Brass	3.7 mm	0.146 in	Detent Lock	Tin	Shrouded - 4 Wall	UL94 V-0	Solder	Natural	85 °C	-25 °C	Circular	All	Board to Cable/Wire	0.134 "	3.4 mm

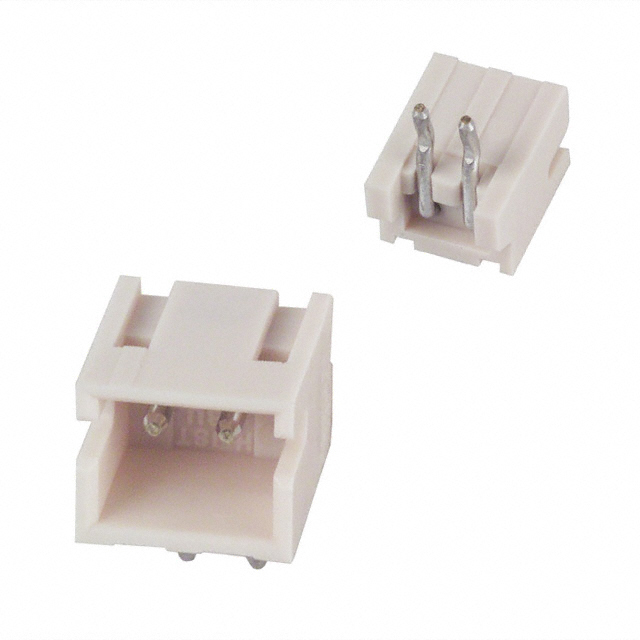

JST Sales America Inc. S2B-ZR	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Male Pin	1	Header	Right Angle Through Hole	50 V	Brass	3.7 mm	0.146 in	Detent Lock	Tin	Shrouded - 4 Wall	UL94 V-0	Solder	Natural	85 °C	-25 °C	Circular	All	Board to Cable/Wire	0.106 in		2.4 mm	0.094 in	2.69 mm

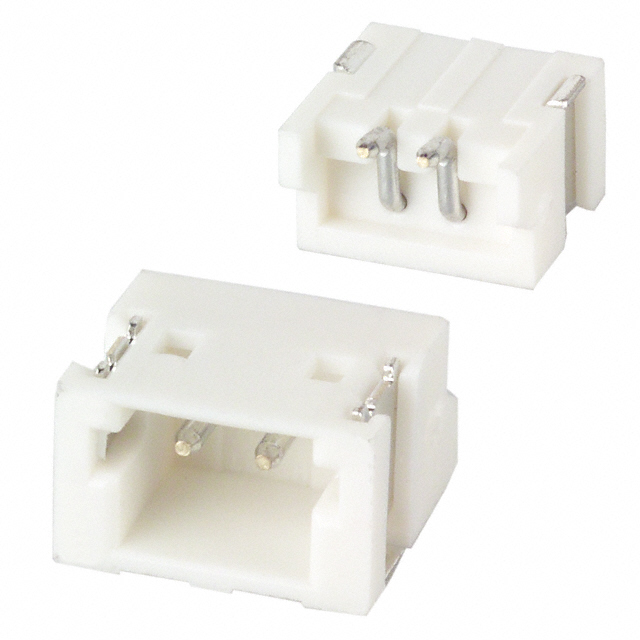

JST Sales America Inc. S2B-ZR-SM2-TF	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	1	Header	Right Angle Surface Mount	50 V	Brass	3.7 mm	0.146 in	Detent Lock	Tin	Shrouded - 4 Wall	UL94 V-0	Solder	Natural	85 °C	-25 °C	Circular	All	Board to Cable/Wire			2.4 mm	0.094 in		Board Guide
JST Sales America Inc. S2B-ZR-SM4A-TF	2	Nylon 6T Polyamide (PA6T)	Male Pin	1	Header	Right Angle Surface Mount	50 V	Brass	3.7 mm	0.146 in	Detent Lock	Tin	Shrouded - 4 Wall	UL94 V-0	Solder	Natural	85 °C	-25 °C	Circular	All	Board to Cable/Wire						Solder Retention
