725-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Card Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Bay/Row	Contact Type	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions	Contact Finish	Read Out	Color	Number of Rows [custom]	Termination Rows	Number of Rows
EDAC Inc. 725-030-560-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit	15	Cantilever Make Before Break	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Dual	Black	2
EDAC Inc. 725-030-520-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit	15	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Dual	Black	2

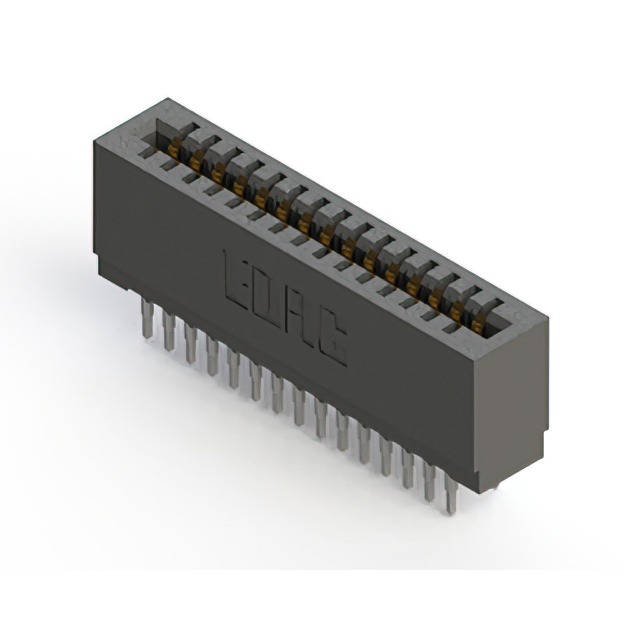

EDAC Inc. 725-030-525-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit	15	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Dual	Black	2
EDAC Inc. 725-030-525-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	30	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Single	Black		1	1
EDAC Inc. 725-030-520-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	30	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Single	Black		1	1

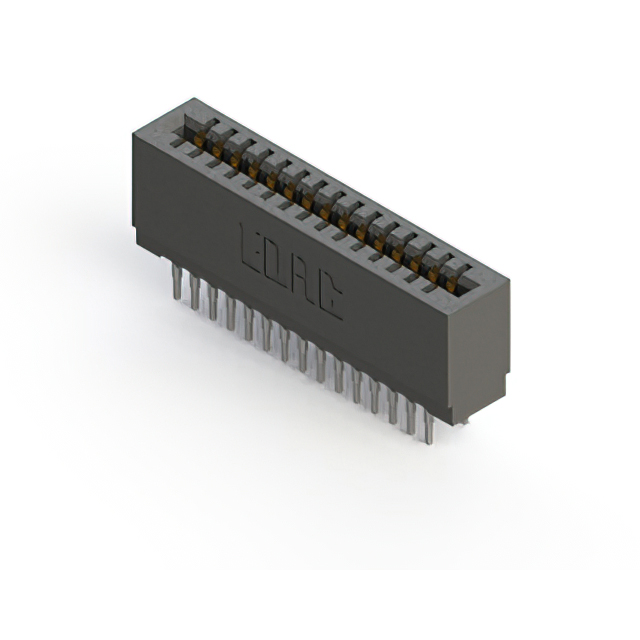

EDAC Inc. 725-030-545-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	15	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Dual	Black	2
EDAC Inc. 725-030-541-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	30	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Single	Black		1	1
EDAC Inc. 725-030-522-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	30	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Single	Black		1	1

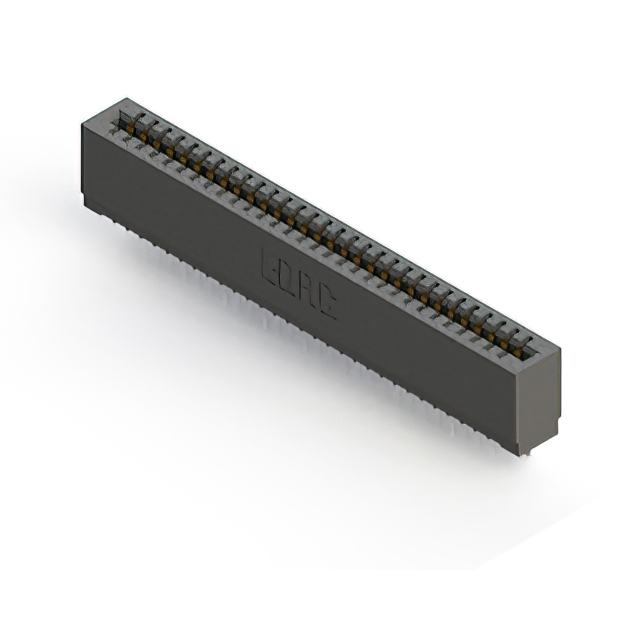

EDAC Inc. 725-030-545-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	30	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Single	Black		1	1
EDAC Inc. 725-030-541-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	15	Cantilever	Through Hole	Copper Alloy	-40 C	105 ░C	Female	30	Gold	Dual	Black	2
