S823 Series
Manufacturer: NKK Switches
Beta
⌘K

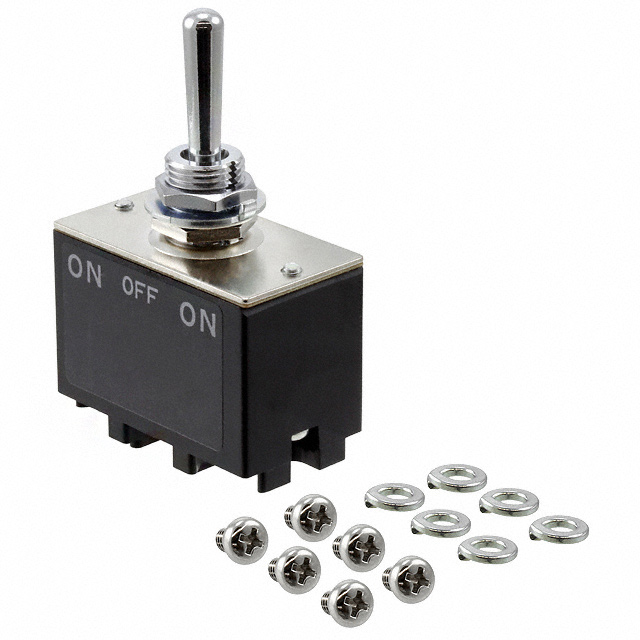

TOGGLE SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, S SERIES, PANEL MOUNT, 30 A
| Part | Electrical Life | Actuator Material | Illumination | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Bushing Thread | Switch Function | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Termination Style | Actuator Type | Voltage Rating - DC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | Panel Mount | 70 °C | -10 °C | 22 mm | M12 x 1 | On-Off-On | 30 A | 12.5 mm | 125 V | Screw Terminal | Standard Round | 30 V | DPDT |
