WP914 Series

Catalog

LED QUAD-LEVEL UNI-COLOR YELLOW 590NM 8-PIN BULK

Part	Wavelength - Peak	Millicandela Rating	Voltage Rating	Mounting Type	Lens Type	Current	Color	Viewing Angle	Configuration	Lens Style	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Supplier Device Package	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Lens Color	Height (Max) [z]	Lens Transparency	Package / Case	Height (Max) [Max] [z]	Lens Size	Lens Size
Kingbright WP914CK/4YDT	590 nm	4 mcd	2.1 V	Right Angle Through Hole	Diffused Tinted	20 mA	Yellow	100 °	Bar - 4 High DIP
Kingbright WP914GT	565 nm	8 mcd		Through Hole			Green	90 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	568 nm	Rectangular	2 mm	3 mm	2.2 V	Green	6 mm	Clear	Radial
Kingbright WP914IT	627 nm	5 mcd		Through Hole			Red	90 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	617 nm	Rectangular	2 mm	3 mm	2 V	Red		Clear	Radial	5 mm

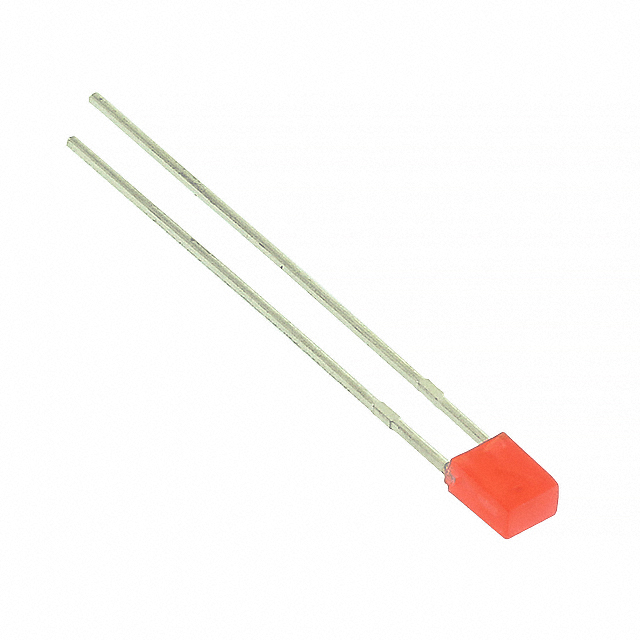

Kingbright WP914IDT	627 nm	4 mcd		Through Hole			Red	100 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	617 nm	Rectangular	2 mm	3 mm	2 V	Red	4 mm	Diffused	Radial

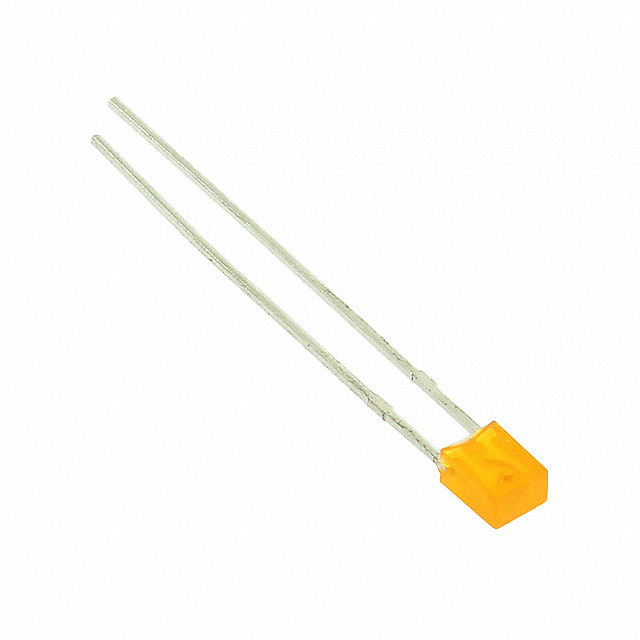

Kingbright WP914EDT	627 nm	4 mcd		Through Hole				100 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	617 nm	Rectangular	2 mm	3 mm	2 V	Orange	4 mm	Diffused	Radial
Kingbright WP914HT	700 nm	0.5 mcd		Through Hole			Red	90 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	635 nm	Rectangular	2 mm	3 mm	2.25 V	Red		Clear	Radial	5 mm

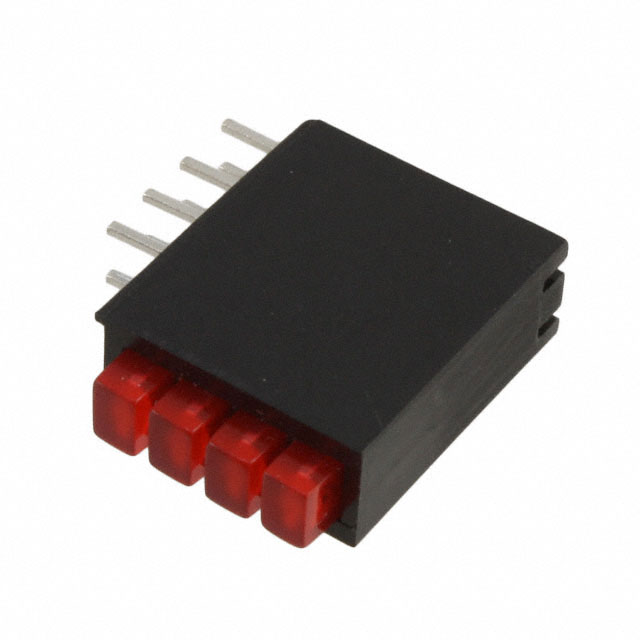

Kingbright WP914CK/4IDT		5.5 mcd	2 V	Right Angle Through Hole	Diffused Tinted	20 mA	Red (x 4)	100 °	Bar - 4 High DIP

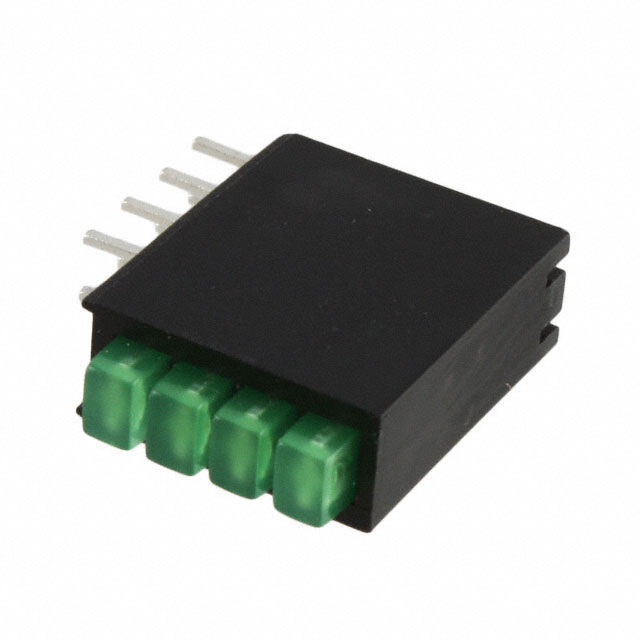

Kingbright WP914CK/4GDT	568 nm	4.5 mcd		Right Angle Through Hole	Diffused Tinted	20 mA	Green	100 °	Bar - 4 High DIP	Round with Domed Top														3 mm	T-1
Kingbright WP914ET	627 nm	5 mcd		Through Hole				90 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	617 nm	Rectangular	2 mm	3 mm	2 V	Orange		Clear	Radial	5 mm
Kingbright WP914GDT	565 nm	6 mcd		Through Hole			Green	100 °	Standard	Rectangle with Flat Top	20 mA	3 mm	2 mm	568 nm	Rectangular	2 mm	3 mm	2.2 V	Green	4 mm	Diffused	Radial
