FUSE 5x20 F LBC 0.7A/250V (P)
Description
AI

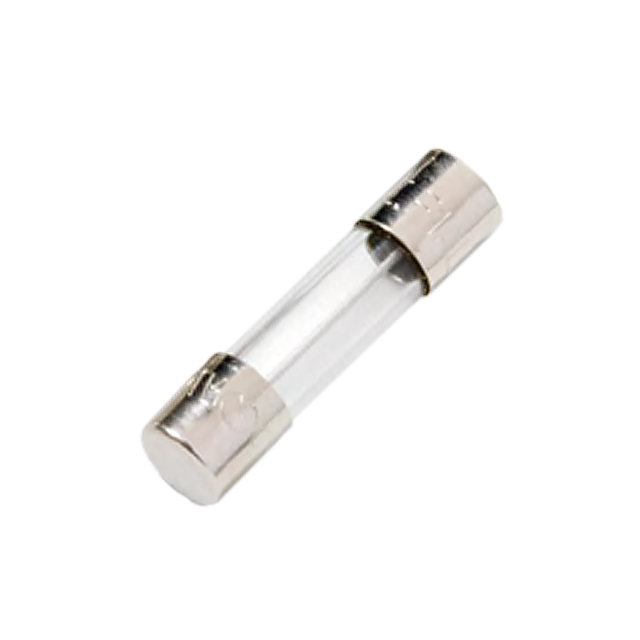

5x20mm meduim- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5x20 F LBC 0.7A/250V (P)
FUSE 5x20 F LBC 0.7A/250V (P)
| Part | Voltage Rating - AC | Mounting Type | Fuse Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Approval Agency | Melting I²t | Package / Case [y] | Package / Case | Package / Case [x] | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | DC Cold Resistance | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 250 V | Through Hole | Cartridge Glass | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | 700 mA | 35 A | CE CSA KC UL | 0.156 I²t | 20 mm | Axial | 5 mm | Fast Blow | -55 C | 125 °C | ||
 LITTELFUSE | 250 V | Through Hole | Cartridge Glass | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | 700 mA | 35 A | CE CSA K-Mark UL | 0.156 I²t | 20 mm | Axial | 5 mm | Fast Blow | -55 C | 125 °C | ||
 LITTELFUSE | 250 V | Requires Holder | Cartridge Glass | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 700 mA | 35 A | CE CSA KC UL | 0.156 I²t | 20 mm | 5 mm | Fast Blow | -55 C | 125 °C | 0.2625 Ohms | 0.156 | |
 LITTELFUSE | 250 V | Requires Holder | Cartridge Glass | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 700 mA | 35 A | CE CSA KC UL | 0.156 I²t | 20 mm | 5 mm | Fast Blow | -55 C | 125 °C |
