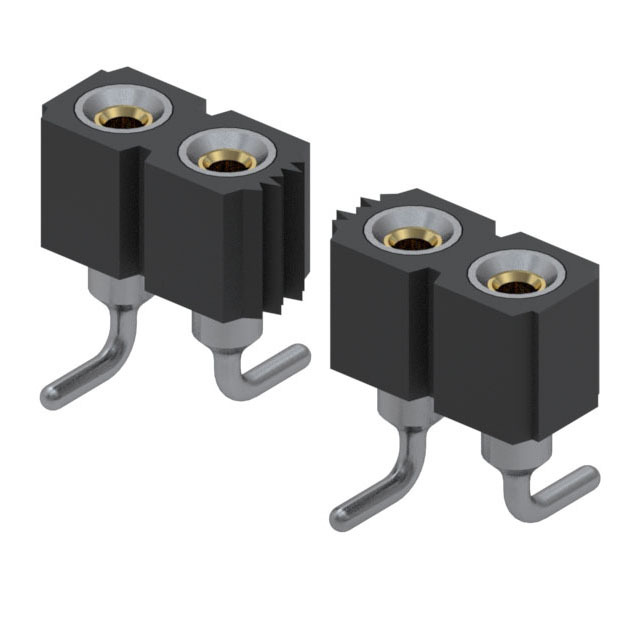

310-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 19POS 0.1 GOLD PCB

...

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Connector Type	Material Flammability Rating	Mounting Type	Contact Type	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Voltage Rating	Contact Finish - Mating	Fastening Type	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 310-43-119-61-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	19	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-159-61-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	59	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-139-41-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	39	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-162-61-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	62	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-137-61-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	37	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-118-61-105000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C			3 A	Receptacle	UL94 V-0	Surface Mount	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	18	Tin	All	Black	5.6 mm	0.22 in
Mill-Max Manufacturing Corp. 310-43-146-61-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	46	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-151-61-105000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C			3 A	Receptacle	UL94 V-0	Surface Mount	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	51	Tin	All	Black	5.6 mm	0.22 in
Mill-Max Manufacturing Corp. 310-43-123-41-001000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C	0.125 in	3.18 mm	3 A	Receptacle	UL94 V-0	Through Hole	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	23	Tin	All	Black
Mill-Max Manufacturing Corp. 310-43-105-61-105000	Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	-55 C	125 °C			3 A	Receptacle	UL94 V-0	Surface Mount	Female Socket	Solder	1	0.1 "	2.54 mm	0.76 Ám	30 Áin	100 V	150 VDC	Gold	Push-Pull	5	Tin	All	Black	5.6 mm	0.22 in
