SBSGC Series

Catalog

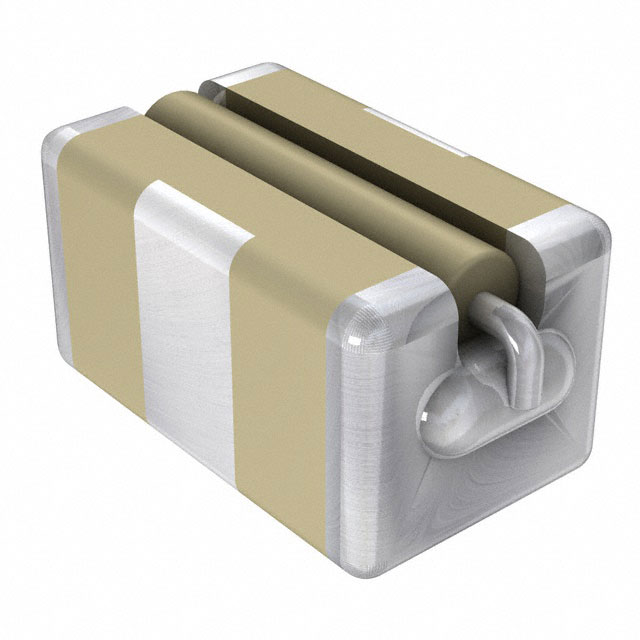

SURFACE MOUNT C AND PI FILTER

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Insertion Loss	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Capacitance	Temperature Coefficient	Current	Height (Max) [z]	Height (Max) [z]	Voltage - Rated	Size / Dimension [z]	Size / Dimension [z]
Knowles Syfer SBSGC1000154MXT	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	0.15 ÁF	X7R	10 A	2.65 mm	0.104 in	100 V
Knowles Syfer SBSGC5000103MXT	Surface Mount	-55 C	125 °C	20 %	38 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	10000 pF	X7R	10 A	2.65 mm	0.104 in	500 V
Knowles Syfer SBSGC5000222MXB	Surface Mount	-55 C	125 °C	20 %		0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	2200 pF	X7R	10 A	2.65 mm	0.104 in	500 V
Knowles Syfer SBSGC5000153MXB	Surface Mount	-55 C	125 °C	20 %	38 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	15000 pF	X7R	10 A	2.65 mm	0.104 in	500 V
Knowles Syfer SBSGC2000683MXT	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	0.068 µF	X7R	10 A	2.65 mm	0.104 in	200 VDC
Knowles Syfer SBSGC5000473MXB	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm		1812 (4532 Metric)		X7R	10 A	2.65 mm	0.104 in	500 V	0.104 "	2.65 mm
Knowles Syfer SBSGC1000104MXT	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	100000 pF	X7R	10 A	2.65 mm	0.104 in	100 V
Knowles Syfer SBSGC5000153MXR	Surface Mount	-55 C	125 °C	20 %	38 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	15000 pF	X7R	10 A	2.65 mm	0.104 in	500 V
Knowles Syfer SBSGC1000154MXB	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	0.15 ÁF	X7R	10 A	2.65 mm	0.104 in	100 V
Knowles Syfer SBSGC5000333MXR	Surface Mount	-55 C	125 °C	20 %	39 dB	0.126 in	0.179 in	4.55 mm	3.2 mm	3 mm Width	1812 (4532 Metric)	0.033 çF	X7R	10 A	2.65 mm	0.104 in	500 V
