OQ12 Series

Catalog

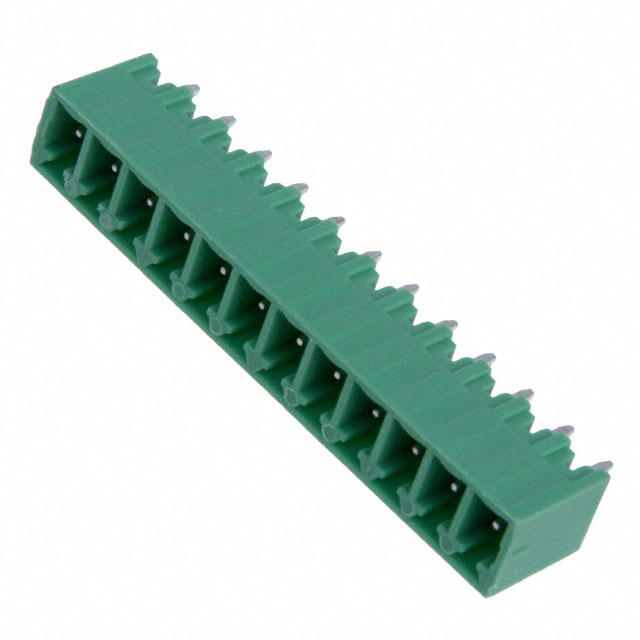

TERM BLOCK HDR 12POS VERT 3.81MM

Part	Housing Material	Insulation Height	Insulation Height	Type	Number of Positions	Positions Per Level	Mounting Type	Contact Mating Finish	Contact Material	Material Flammability Rating	Number of Levels	Voltage - UL	Header Orientation	Termination Style	Color	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Features
Amphenol Anytek OQ1232800000G	Thermoplastic	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Gray	3.5 mm	0.138 in	0.15 in	3.81 mm	-40 °C	115 °C	10 A
Amphenol Anytek OQ1270500000G	Thermoplastic	0.472 in	12 mm	Header Male Pins Shrouded (2 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Green	4 mm	0.157 in	0.197 in	5 mm	-40 °C	115 °C	20 A
Amphenol Anytek OQ1201500000G	Thermoplastic	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Green	4 mm	0.157 in	0.3 in	7.62 mm	-40 °C	115 °C	20 A
Amphenol Anytek OQ121C00B000G	Thermoplastic Resin	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Black	2.6 mm	0.102 in	0.138 in	3.5 mm	-40 °C	65 °C	10 A	Mating Flange Pick and Place Cap
Amphenol Anytek OQ1212010300G	Thermoplastic	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	90° Right Angle	Solder	Black	3.5 mm	0.138 in	0.138 in	3.5 mm	-40 °C	115 °C	10 A	Locking Ramp
Amphenol Anytek OQ1215800000G	Thermoplastic	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Gray	3.5 mm	0.138 in	0.138 in	3.5 mm	-40 °C	115 °C	10 A	Mating Flange
Amphenol Anytek OQ1232500000G	Thermoplastic Resin	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper Alloy	UL94 V-0	1	300 V	Vertical	Solder	Green	3.5 mm	0.138 in	0.15 in	3.81 mm	-40 °C	115 °C	10 A
Amphenol Anytek OQ1212800300G	Thermoplastic	0.362 in	9.2 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Gray	3.5 mm	0.138 in	0.138 in	3.5 mm	-40 °C	115 °C	10 A	Locking Ramp
Amphenol Anytek OQ1271000300G	Thermoplastic	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	Vertical	Solder	Black	4 mm	0.157 in	0.197 in	5 mm	-40 °C	115 °C	20 A	Locking Ramp
Amphenol Anytek OQ1212510300G	Thermoplastic	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	12	12	Through Hole	Tin	Copper	UL94 V-0	1	300 V	90° Right Angle	Solder	Green	3.5 mm	0.138 in	0.138 in	3.5 mm	-40 °C	115 °C	10 A	Locking Ramp
