TL6275 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCHES TACTILE, SPST-NO, OFF-(ON), THROUGH HOLE, LED, WHITE
| Part | Circuit | Mounting Type | Switch Function | Actuator Height off PCB, Vertical [z] | Operating Force | Illumination Voltage (Nominal) | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Orientation | Illumination Type, Color | Outline [x] | Outline [y] | Contact Rating @ Voltage | Actuator Type | Mechanical Life | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | SPST-NO | Through Hole | Off-Mom | 7.2 mm | 350 gf | 3.2 VDC | Illuminated | -20 ░C | 70 °C | PC Pin | Top Actuated | LED White | 8 mm | 8 mm | 0.05 A 12 VDC | Plunger for Cap | ||

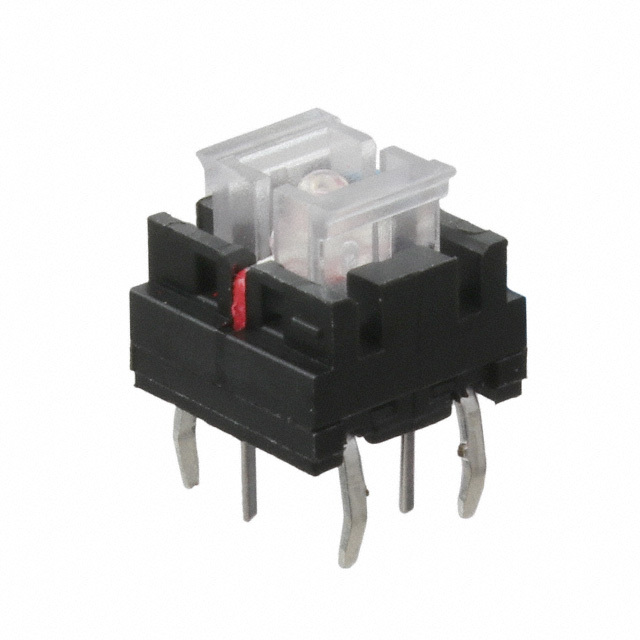

 E-Switch | SPST-NO | Through Hole | Off-Mom | 16.2 mm | 350 gf | Illuminated | -25 °C | 70 °C | PC Pin | Top Actuated | LED Red | 8 mm | 8 mm | 0.05 A 12 VDC | Round Button | 100000 Cycles | 0.25 mm | |

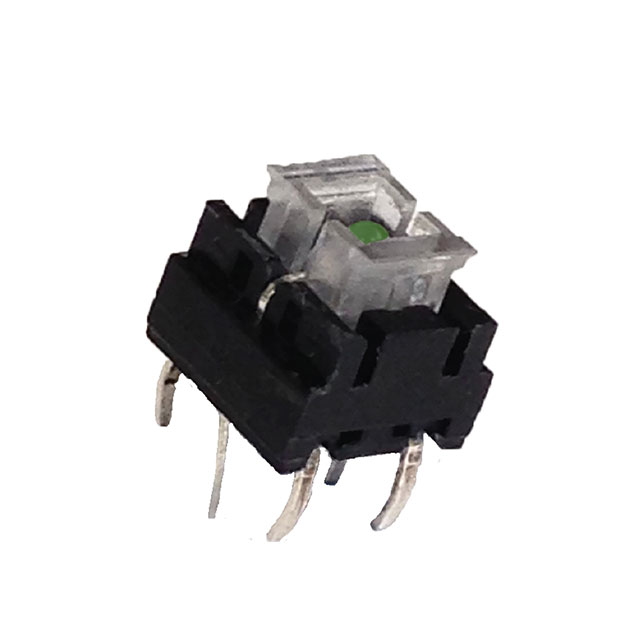

 E-Switch | SPST-NO | Through Hole | Off-Mom | 11.15 mm | 350 gf | Illuminated | -25 °C | 70 °C | PC Pin | Top Actuated | Green LED | 8 mm | 8 mm | 0.05 A 12 VDC | Round Button | 100000 Cycles | 0.25 mm |
