8365-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 8365-0-15-80-13-14-10-0	-55 C	125 °C	2.69 mm	0.106 in	0.12 in	3.05 mm	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm	Hex Press-Fit	No Tail	2.24 mm	0.088 "	Gold	7.24 mm	0.285 in	8.26 mm	0.325 in	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 8365-0-15-15-13-14-10-0	-55 C	125 °C	2.69 mm	0.106 in	0.12 in	3.05 mm	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm	Hex Press-Fit	No Tail	2.24 mm	0.088 "	Gold	7.24 mm	0.285 in	8.26 mm	0.325 in	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 8365-0-15-01-13-27-10-0	-55 C	125 °C	2.69 mm	0.106 in	0.12 in	3.05 mm	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm	Hex Press-Fit	No Tail	2.24 mm	0.088 "	Gold	7.24 mm	0.285 in	8.26 mm	0.325 in	0.76 Ám	30 Áin

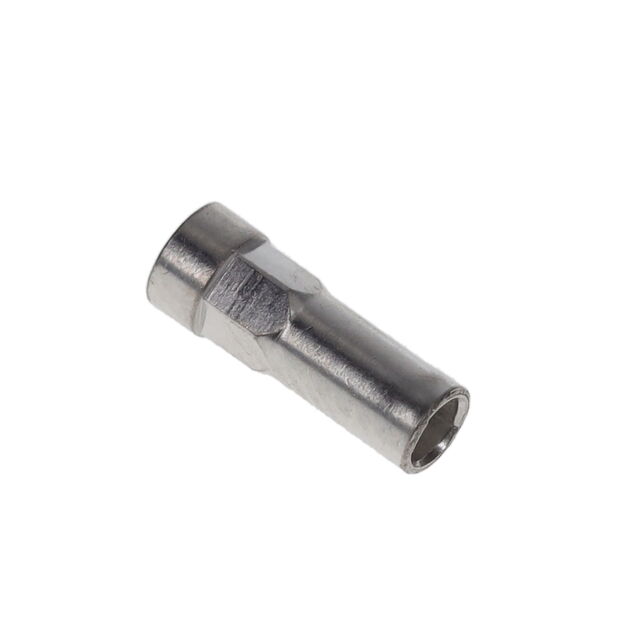

Mill-Max Manufacturing Corp. 8365-0-15-01-13-01-10-0	-55 C	125 °C	2.69 mm	0.106 in	0.12 in	3.05 mm	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm	Hex Press-Fit	No Tail	2.24 mm	0.088 "	Tin-Lead	7.24 mm	0.285 in	8.26 mm	0.325 in	5.08 Ám	200 Áin

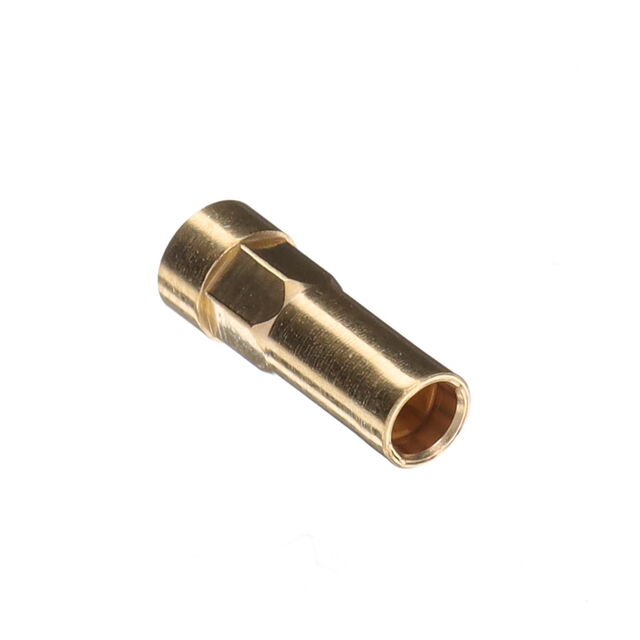

Mill-Max Manufacturing Corp. 8365-0-15-15-13-27-10-0	-55 C	125 °C	2.69 mm	0.106 in	0.12 in	3.05 mm	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm	Hex Press-Fit	No Tail	2.24 mm	0.088 "	Gold	7.24 mm	0.285 in	8.26 mm	0.325 in	0.76 Ám	30 Áin
