XC6602 Series

Catalog

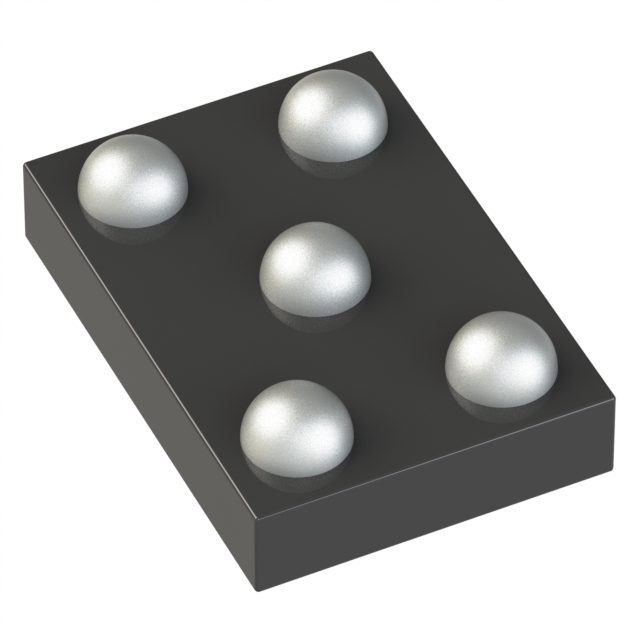

IC REG LINEAR 0.8V 1A WLP-5-02

Part	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Mounting Type	Current - Quiescent (Iq)	Number of Regulators	Output Configuration	Package / Case	Voltage - Output (Min/Fixed)	PSRR	Voltage Dropout (Max) [Max]	Current - Output	Supplier Device Package	Control Features	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max)
Torex Semiconductor Ltd XC6602A0810R-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	5-XFBGA WLBGA	0.8 V	75 dB	0.122 V	1 A	WLP-5-02	Enable Soft Start	3 V
Torex Semiconductor Ltd XC6602B051ER-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	6-UFDFN Exposed Pad		75 dB	0.206 V	1 A	6-USPC (1.8x2)	Enable	3 V	0.5 V
Torex Semiconductor Ltd XC6602A1110R-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	5-XFBGA WLBGA	1.1 V	75 dB	0.122 V	1 A	WLP-5-02	Enable Soft Start	3 V
Torex Semiconductor Ltd XC6602B1510R-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	5-XFBGA WLBGA	1.5 V	75 dB	0.124 V	1 A	WLP-5-02	Enable	3 V
Torex Semiconductor Ltd XC6602B171ER-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	6-UFDFN Exposed Pad	1.7 V	75 dB		1 A	6-USPC (1.8x2)	Enable	3 V		0.208 V
Torex Semiconductor Ltd XC6602A181PR-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	SOT-89-5/6	1.8 V	75 dB		1 A	SOT-89-5	Enable Soft Start	3 V		0.213 V
Torex Semiconductor Ltd XC6602B101MR-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	SOT-26W	1 V	75 dB	0.206 V	1 A	SOT-26W	Enable	3 V
Torex Semiconductor Ltd XC6602A1510R-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	5-XFBGA WLBGA	1.5 V	75 dB	0.124 V	1 A	WLP-5-02	Enable Soft Start	3 V
Torex Semiconductor Ltd XC6602A0710R-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	5-XFBGA WLBGA		75 dB	0.122 V	1 A	WLP-5-02	Enable Soft Start	3 V	0.7 V
Torex Semiconductor Ltd XC6602B181ER-G	85 C	-40 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	143 µA	1	Positive	6-UFDFN Exposed Pad	1.8 V	75 dB		1 A	6-USPC (1.8x2)	Enable	3 V		0.213 V
