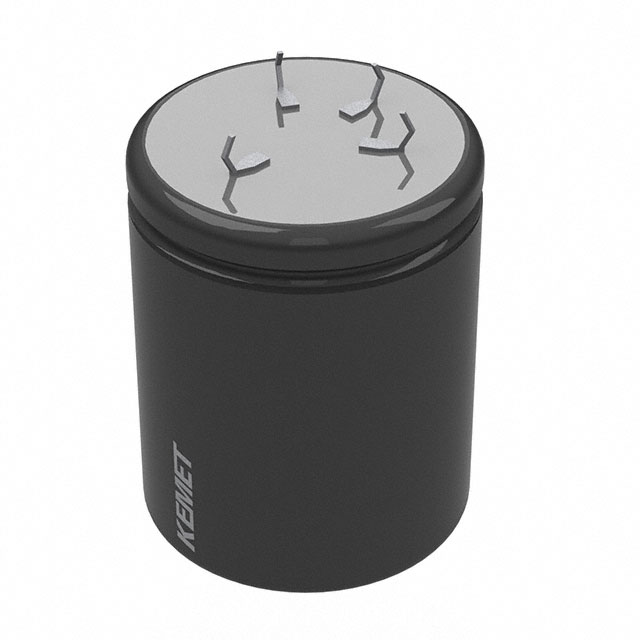

ALC70E Series

Manufacturer: KEMET

Catalog

CAP ALUM 390UF 20% 400V SNAP TH

Part	Package / Case	Polarization	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Capacitance	Voltage - Rated	Ripple Current @ Low Frequency	Impedance	Lifetime @ Temp.	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET ALC70E391DC400	Radial Can - Snap-In - 4 Lead	Polar	354 mOhm	85 °C	-40 C	4.96 A	37 mm	1.457 in	0.886 in	22.5 mm	390 µF	400 V	2.08 A	187 mOhms	15000 Hrs	20 %	1.378 "	35 mm	Through Hole	General Purpose
KEMET ALC70E132EH350	Radial Can - Snap-In - 4 Lead	Polar	115 mOhm	85 °C	-40 C	9.2 A	62 mm		0.886 in	22.5 mm	1300 µF	350 V	4.44 A	62 mOhms	18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose	2.441 in
KEMET ALC70E181DD600	Radial Can - Snap-In - 4 Lead	Polar	711 mOhm	85 °C	-40 C	3.91 A		1.654 in	0.886 in	22.5 mm	180 µF	600 V	1.81 A	491 mOhms	15000 Hrs	20 %	1.378 "	35 mm	Through Hole	General Purpose		42 mm
KEMET ALC70E271EB500	Radial Can - Snap-In - 4 Lead	Polar	765 mOhm	85 °C	-40 C	3.74 A		1.26 in	0.886 in	22.5 mm	270 µF	500 V	1.86 A	545 mOhms	18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose		32 mm
KEMET ALC70E561EF500	Radial Can - Snap-In - 4 Lead	Polar	370 mOhm	85 °C	-40 C	6.04 A			0.886 in	22.5 mm	560 µF	500 V	3.02 A		18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose	2.047 in		52 mm
KEMET ALC70E202FP450	Radial Can - Snap-In - 4 Lead	Polar	68 mOhm	85 °C	-40 C	14.41 A			0.886 in	22.5 mm	2 mF	450 V	6.97 A	39 mOhms	18000 Hrs	20 %	1.772 "	45 mm	Through Hole	General Purpose	4.213 in		107 mm
KEMET ALC70E112EF350	Radial Can - Snap-In - 4 Lead	Polar	136 mOhm	85 °C	-40 C	8.09 A			0.886 in	22.5 mm	1100 µF	350 V	3.93 A	74 mOhms	18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose	2.047 in		52 mm
KEMET ALC70E182DF200	Radial Can - Snap-In - 4 Lead	Polar	127 mOhm	85 °C	-40 C	7.42 A			0.886 in	22.5 mm	1800 µF	200 VDC	4.11 A	81 mOhms	15000 Hrs	20 %	1.378 "	35 mm	Through Hole	General Purpose	2.047 in		52 mm
KEMET ALC70E822EF100	Radial Can - Snap-In - 4 Lead	Polar	42 mOhm	85 °C	-40 C	9.04 A			0.886 in	22.5 mm		100 V	7.59 A	35 mOhms	18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose	2.047 in		52 mm
KEMET ALC70E302EH200	Radial Can - Snap-In - 4 Lead	Polar	81 mOhm	85 °C	-40 C	9.3 A	62 mm		0.886 in	22.5 mm	3000 µF	200 VDC	5.67 A	53 mOhms	18000 Hrs	20 %	1.575 in	40 mm	Through Hole	General Purpose	2.441 in
