FI2D006 Series
Manufacturer: Belden Inc.
Beta
⌘K

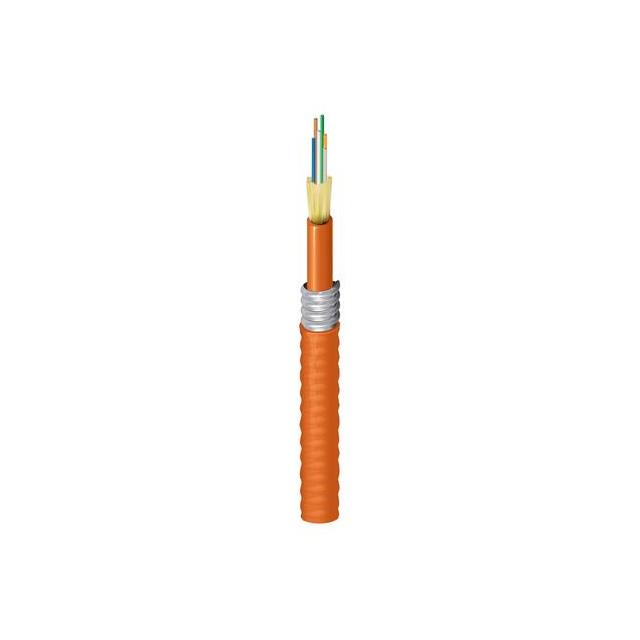

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Style | Ratings | Features | Core Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Type | Cladding Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Tensile Strength | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 70 °C | Multiple Fibers | OFNR | 6 Fibers Rip Cord | 50 µm | 5.59 mm | 0.22 in | Multimode | 125 µm | Orange | Poly-Vinyl Chloride (PVC) | 20.4 kg | |
 Belden Inc. | -20 ░C | 70 °C | Multiple Fibers | OFCR | Armored | 50 µm | 12.7 mm | 0.5 in | Multimode | 125 µm | Orange | Poly-Vinyl Chloride (PVC) | 20.4 kg | 6 Oz |
Belden Inc. | 0 °C | 70 °C | Multiple Fibers | OFCP | Armored | 50 µm | 11.18 mm | 0.44 " | Multimode | 125 µm | Orange | Poly-Vinyl Chloride (PVC) | 20.4 kg | 6 Oz |
Belden Inc. | 0 °C | 70 °C | Multiple Fibers | OFNP | 6 Fibers Rip Cord | 50 µm | 4.83 mm | 0.19 in | Multimode | 125 µm | Orange | Poly-Vinyl Chloride (PVC) | 20.4 kg |
