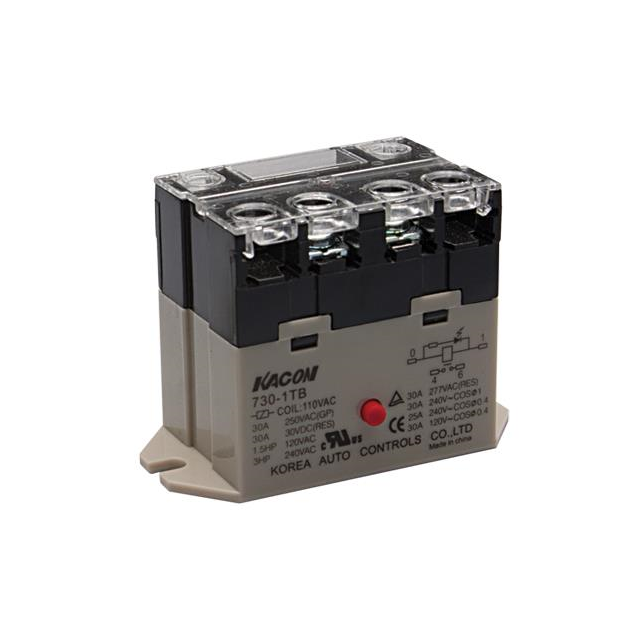

730-1TB Series
Manufacturer: Kacon
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 110V
| Part | Coil Voltage | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Contact Rating (Current) | Relay Type | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Features | Coil Current | Mounting Type | Form A Count | Contact Form | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | 110 V | Screw Terminal | 60 °C | -10 °C | 30 A | General Purpose | 30 VDC | 277 VAC | Test Button | 24.5 mA | Chassis Mount | 1 | SPST-NO | 30 ms | 30 ms | Silver Alloy |
Kacon | 220 V | Screw Terminal | 60 °C | -10 °C | 30 A | General Purpose | 30 VDC | 277 VAC | Test Button | 11.8 mA | Chassis Mount | 1 | SPST-NO | 30 ms | 30 ms | Silver Alloy |
