1-5435802 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Electrical Life | Body Material | Length | Length | Number of Positions | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Actuator Level | Contact Material | Contact Finish | Actuator Type | Termination Style | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Pitch | Pitch | Mounting Type | Washable | Length [x] | Length [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

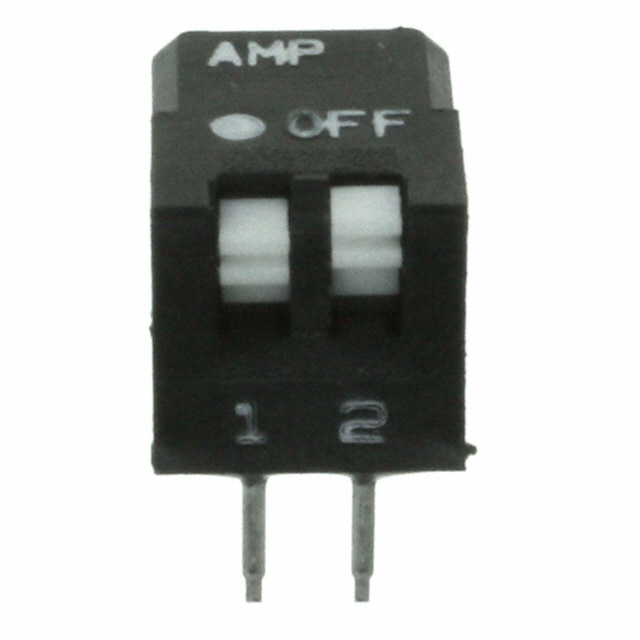

 TE Connectivity AMP Connectors | 7000 Cycles | Polyester (PET) Glass Filled | 0.28 in | 7.11 mm | 2 | 24 VDC | 7.37 mm | 0.29 in | Flush Recessed | Copper Alloy | Gold | Piano | PC Pin | SPST | -55 C | 105 ░C | 25 mA | 2.54 mm | 0.1 " | Right Angle Through Hole | ||||

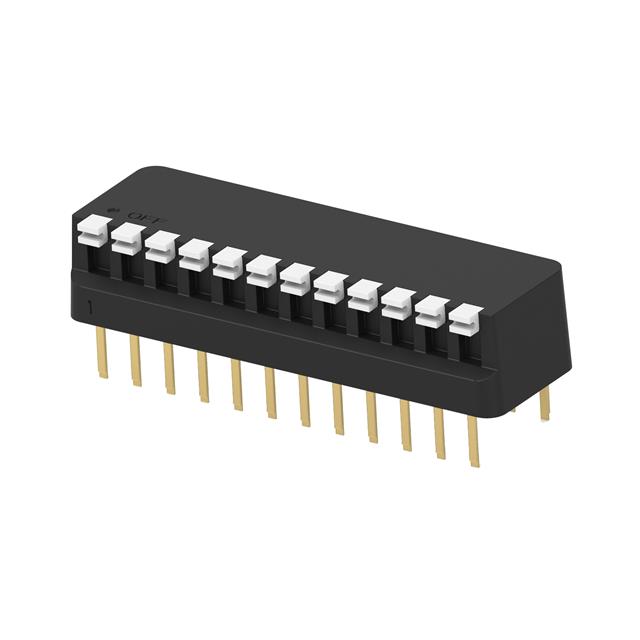

 TE Connectivity AMP Connectors | 12 | Raised | Piano | SPST | Through Hole | |||||||||||||||||||

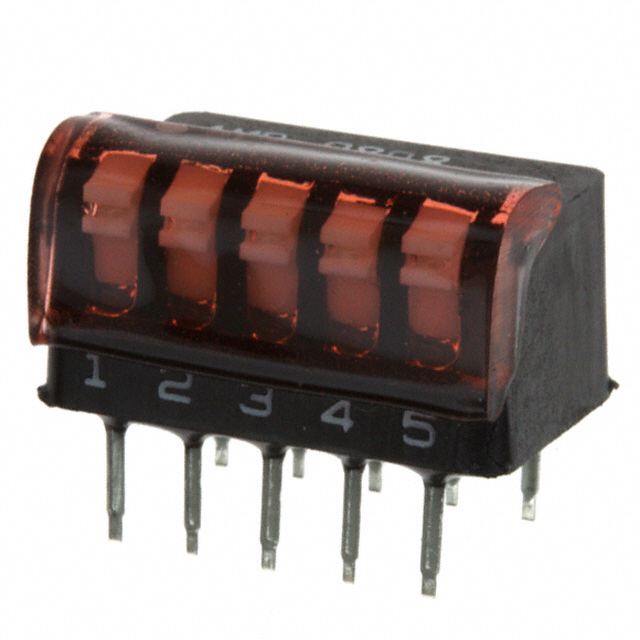

 TE Connectivity AMP Connectors | 7000 Cycles | Polyester (PET) Glass Filled | 5 | 24 VDC | 7.37 mm | 0.29 in | Raised | Copper Alloy | Gold | Piano | PC Pin | SPST | -55 C | 105 ░C | 25 mA | 2.54 mm | 0.1 " | Right Angle Through Hole | 0.58 in | 14.73 mm | Tape Seal |
