PSK-S10 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 10W

Part	Number of Outputs	Efficiency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Power (Watts)	Voltage - Isolation	Current - Output 1	Voltage - Output 1	Applications	Features	Mounting Type	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Input Type	DC Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Min) [Min]	Load Regulation	Package / Case	Line Regulation

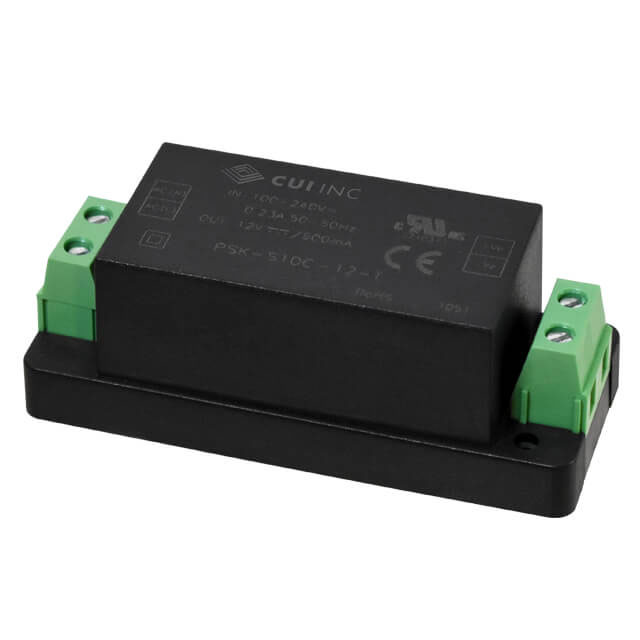

CUI Inc. PSK-S10C-9-T	1	80 %	Enclosed	76 mm	31.5 mm	27.8 mm	1.24 in	1.09 "	2.99 in	CB Scheme EN IEC UL	10 W	4000 V	1.1 A	9 V	Household Appliances ITE (Commercial)	Universal Input	Chassis Mount	55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1	85 VAC 100 V	264 VAC 370 VDC
CUI Inc. PSK-S10C-15-T	1	81 %	Enclosed	76 mm	31.5 mm	27.8 mm	1.24 in	1.09 "	2.99 in	CB Scheme EN IEC UL	11 W	4000 V	700 mA	15 V	Household Appliances ITE (Commercial)	Universal Input	Chassis Mount	55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1	85 VAC 100 V	264 VAC 370 VDC

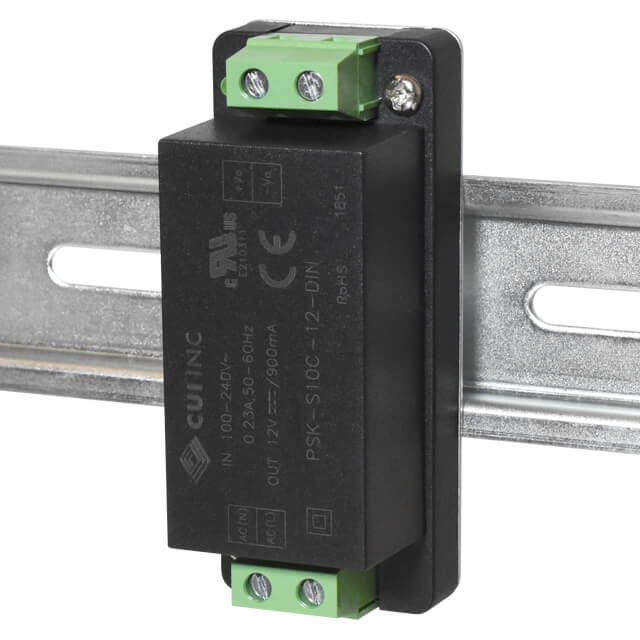

CUI Inc. PSK-S10C-24-DIN	1	83 %		32.4 mm			1.24 in	2.99 in	1.28 in	CB Scheme EN IEC UL	11 W	4000 V		24 V	Household Appliances ITE (Commercial)	Universal Input		55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1			450 mA	AC or DC	370 V	76 mm	31.5 mm	264 VAC	85 VAC	100 V
CUI Inc. PSK-S10C-5	1	76 %	Enclosed	53.8 mm			1.13 "	0.75 "	2.12 in	CB Scheme EN IEC UL	10 W			5 V	Household Appliances ITE (Commercial)	Universal Input	Through Hole	55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1	85 VAC 100 V	264 VAC 370 VDC	2 A			19 mm	28.8 mm				±1%	4-DIP Module	0.5 %
