TCTS Series

Catalog

COMPRESSION CONNECTORS

Part	Contact Finish	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Terminal Type	Wire Gauge	Stud/Tab Size	Termination	Mounting Type	Insulation	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges	Width - Outer Edges	Terminal Style	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Barrel ID [diameter]	Wire Gauge	Length - Overall	Length - Overall

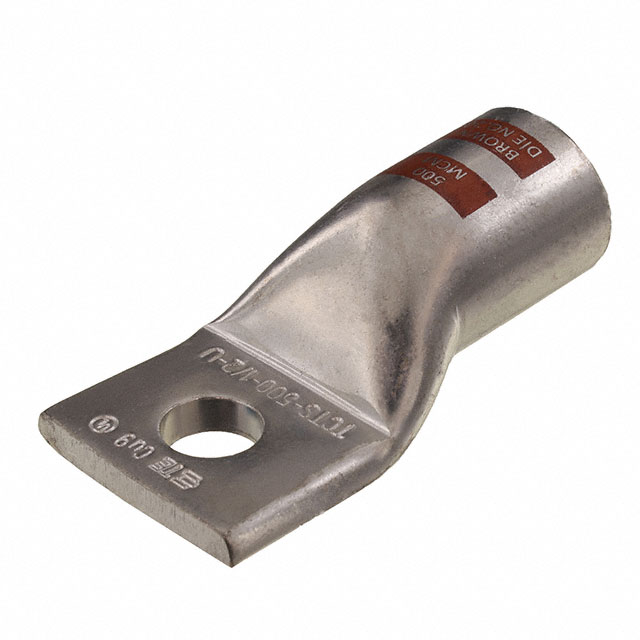

TE Energy & Utilities TCTS-500-1/2-U	Tin	Copper	21.08 mm	0.83 in	Standard	500 MCM	0.5 Stud	Barrel Crimp	Free Hanging (In-Line)	Non-Insulated	79.25 mm	3.12 in	Brown	1.54 in	39.12 mm	Single Stud Hole

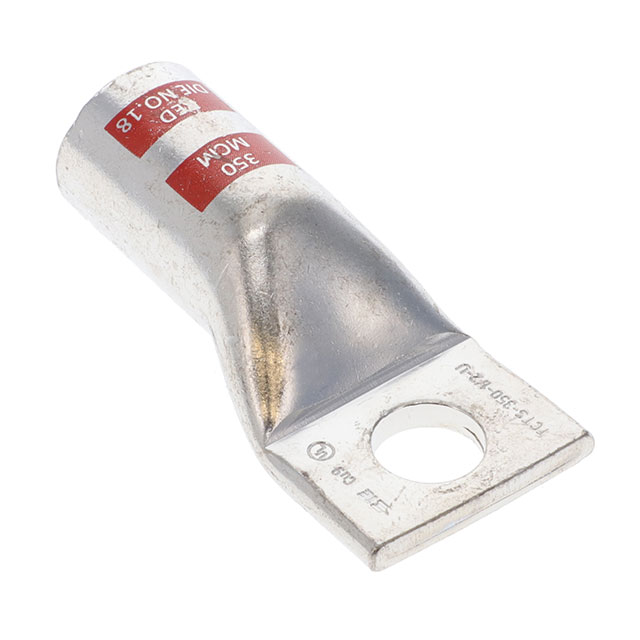

TE Energy & Utilities TCTS-350-1/2-U	Tin	Copper	17.78 mm	0.7 in	Standard	350 MCM (kcmil)	0.5 Stud	Barrel Crimp	Free Hanging (In-Line)	Non-Insulated	69.85 mm	2.75 in	Red		32.77 mm	Single Stud Hole	1.29 in
TE Energy & Utilities TCTS-4/0-1/2-U	Tin	Copper	14.22 mm	0.56 "	Standard	4 aught AWG	0.5 Stud	Barrel Crimp	Free Hanging (In-Line)	Non-Insulated			Purple			Single Stud Hole	1 in	25.4 mm
TE Energy & Utilities TCTS-3/0-1/2-U	Tin	Copper	0.49 in		Standard		0.5 Stud	Barrel Crimp	Free Hanging (In-Line)	Non-Insulated	65.5 mm	2.579 in				Single Stud Hole	0.91 "	23.11 mm	12.45 mm
TE Energy & Utilities TCTS-250-1/2-U	Tin	Copper	14.99 mm	0.59 in	Standard	250 kcmil	0.5 Stud	Barrel Crimp	Free Hanging (In-Line)	Non-Insulated			Yellow			Single Stud Hole	1.09 in	27.69 mm		250 kcmil	2.67 in	67.82 mm
