A3AAH Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - ASC40H/AE40M/ASC40H

Part	Number of Rows [custom]	Cable Termination	Length	Length	Length	Connector Type	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]

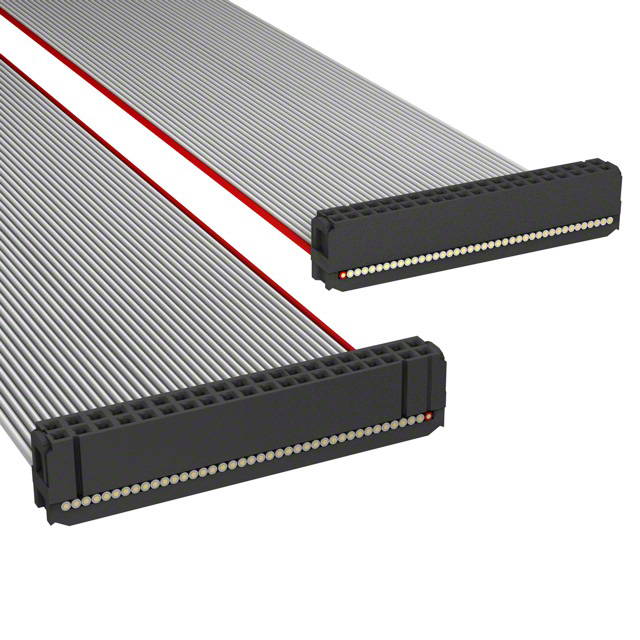

TE Connectivity AMP Connectors A3AAH-4006M	2	IDC	152.4 mm	0.5 '	6 "	Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	40	Multiple Ribbon	0.38 µm	15 µin	0.05 in	1.27 mm
TE Connectivity AMP Connectors A3AAH-2018G	2	IDC				Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	20		0.38 µm	15 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3AAH-2636M	2	IDC	91.44 cm	3 ft		Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	26	Multiple Ribbon	0.38 µm	15 µin	0.05 in	1.27 mm
TE Connectivity AMP Connectors A3AAH-4018G	2	IDC				Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	40		0.38 µm	15 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft

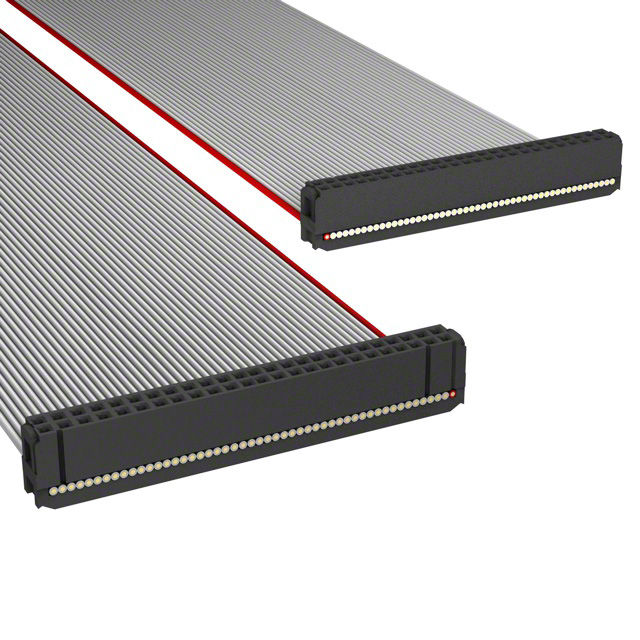

TE Connectivity AMP Connectors A3AAH-5006M	2	IDC	152.4 mm	0.5 '	6 "	Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	50	Multiple Ribbon	0.38 µm	15 µin	0.05 in	1.27 mm
TE Connectivity AMP Connectors A3AAH-3018G	2	IDC				Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	30		0.38 µm	15 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3AAH-5018G	2	IDC				Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	50		0.38 µm	15 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3AAH-1418G	2	IDC				Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	14		0.38 µm	15 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft

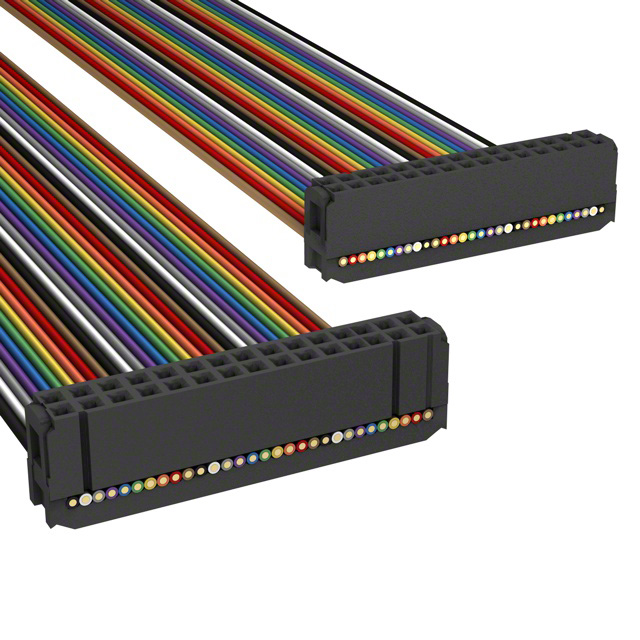

TE Connectivity AMP Connectors A3AAH-3036M	2	IDC	91.44 cm	3 ft		Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	30	Multiple Ribbon	0.38 µm	15 µin	0.05 in	1.27 mm
TE Connectivity AMP Connectors A3AAH-2606M	2	IDC	152.4 mm	0.5 '	6 "	Socket to Socket	Gold	0.1 in	2.54 mm	Unshielded	26	Multiple Ribbon	0.38 µm	15 µin	0.05 in	1.27 mm
