5202FE Series
Manufacturer: Belden Inc.
Beta
⌘K

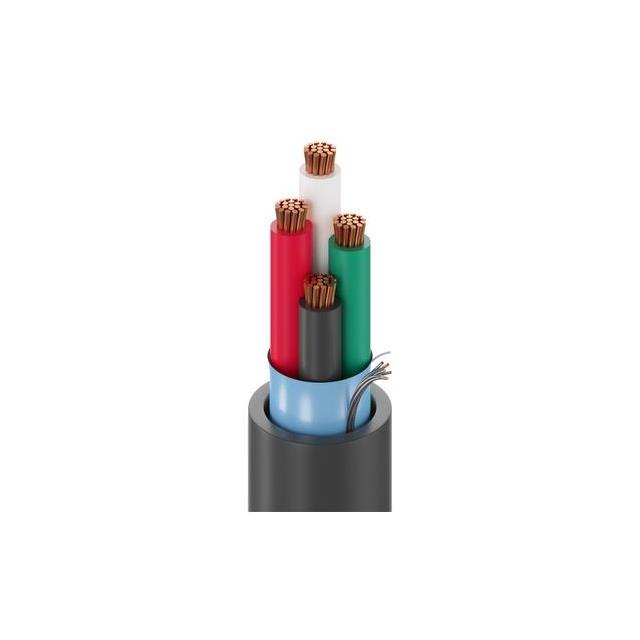

CABLE 4CON 16AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket Color | Jacket (Insulation) Material | Usage | Cable Type | Shield Type | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Material | Features | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Polypropylene (PP) | Gray | Poly-Vinyl Chloride (PVC) Riser | Security Sound | Multi-Conductor | Foil | 4 | 16 AWG | 19 | 29 | 0.017 " | 0.432 mm | 5.44 mm | 0.214 in | UL Style CMR | Copper Bare | Drain Wire Rip Cord | 304.8 m | 1000 ft | 300 VDC |
