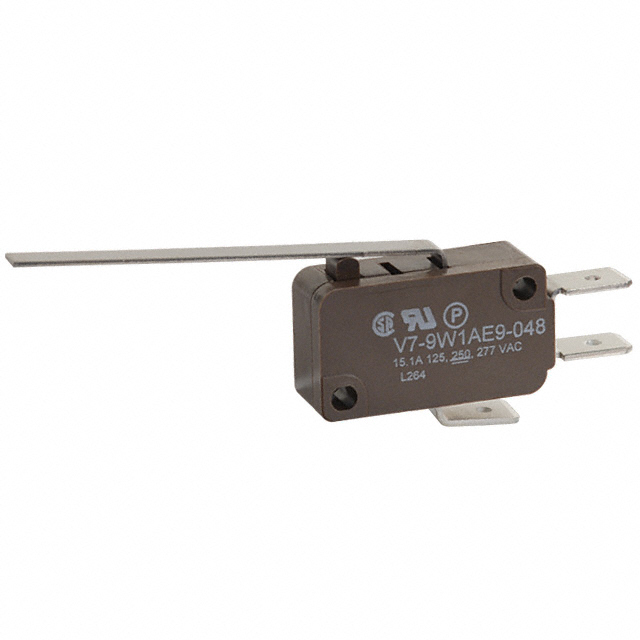

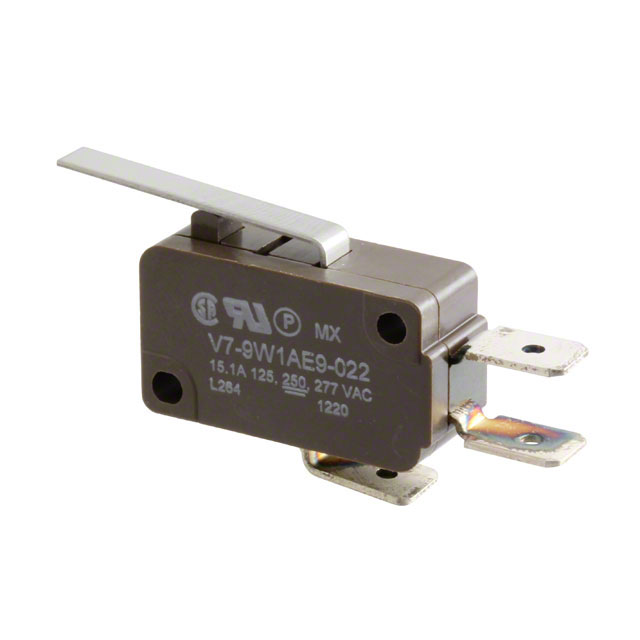

V7-9 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Electrical Life | Operating Position | Operating Position | Operating Force | Termination Style | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Mounting Type | Voltage Rating - AC | Switch Function | Pretravel | Pretravel | Mechanical Life | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Release Force | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | 15.3 mm | 0.602 in | 162 gf | Quick Connect - 0.250" (6.3mm) | 0.07 " | 1.8 mm | 0.028 in | 0.7 mm | Chassis Mount | 125 V | On-Mom | 0.12 in | 3 mm | 10000000 Cycles | Lever Straight | 177 °C | -40 C | SPDT | 8 gf | 15 A |
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | 15.3 mm | 0.602 in | 90 gf | Quick Connect - 0.250" (6.3mm) | 0.125 in | 3.2 mm | 0.055 in | 1.4 mm | Chassis Mount | 125 V | On-Mom | 0.25 in | 6.35 mm | 10000000 Cycles | Lever Straight | 177 °C | -40 C | SPDT | 4 gf | 15 A |
