2029181 Series

Catalog

CONN HEADER VERT 3POS 4.2MM

Part	Contact Finish - Post	Features	Insulation Material	Contact Type	Applications	Pitch - Mating	Pitch - Mating	Number of Rows	Connector Type	Contact Material	Style	Shrouding	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Shape	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Voltage Rating	Insulation Color	Number of Positions Loaded	Number of Positions
TE Connectivity Raychem Cable Protection 2029181-3	Tin	Board Lock Glow Wire Compliant	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	General Purpose Industrial Lighting	4.2 mm	0.165 in	1	Header	Brass	Board to Cable/Wire	Shrouded - 4 Wall	Locking Ramp	-40 °C	105 ░C	UL94 V-0	Square	Through Hole	3.5 mm	0.138 in	12.8 mm	0.504 in	9 A	Solder	600 VAC	Natural	All

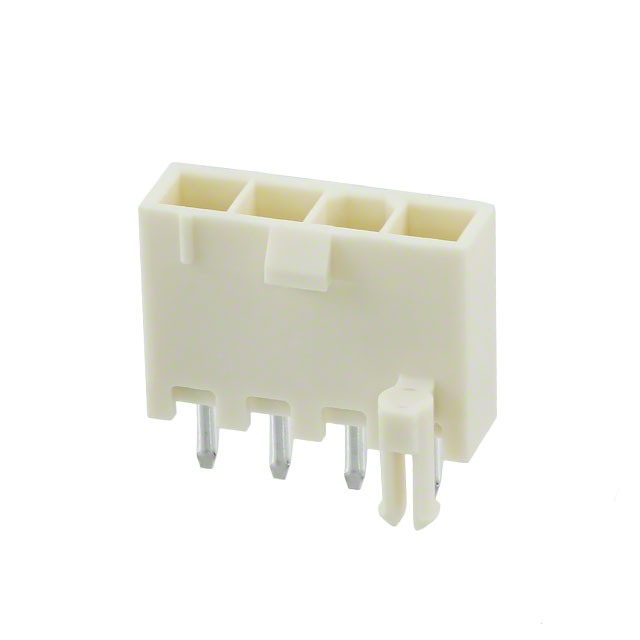

TE Connectivity Raychem Cable Protection 2029181-4	Tin	Board Lock Glow Wire Compliant	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	General Purpose Industrial Lighting	4.2 mm	0.165 in	1	Header	Brass	Board to Cable/Wire	Shrouded - 4 Wall	Locking Ramp	-40 °C	105 ░C	UL94 V-0	Square	Through Hole	3.5 mm	0.138 in	12.8 mm	0.504 in	9 A	Solder	600 VAC	Natural	All	4
TE Connectivity Raychem Cable Protection 2029181-5	Tin	Board Lock Glow Wire Compliant	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	General Purpose Industrial Lighting	4.2 mm	0.165 in	1	Header	Brass	Board to Cable/Wire	Shrouded - 4 Wall	Locking Ramp	-40 °C	105 ░C	UL94 V-0	Square	Through Hole	3.5 mm	0.138 in	12.8 mm	0.504 in	9 A	Solder	600 VAC	Natural	All
