CFS-1001 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Body Material	Length [x]	Length [x]	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Number of Positions	Termination Style	Actuator Level	Pitch	Pitch	Current Rating (Amps)	Contact Material	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Voltage Rating	Circuit

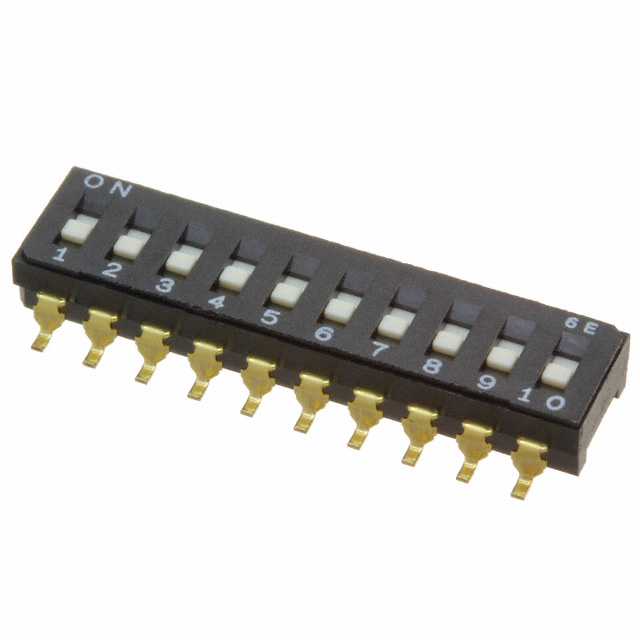

Nidec Components Corporation CFS-1001MB	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	85 °C	-40 C	Slide (Standard)	10	Gull Wing	Flush Recessed	2.54 mm	0.1 "	100 mA	Copper Alloy	3.7 mm	0.146 in	Gold	Surface Mount	6 V	SPST
Nidec Components Corporation CFS-1001TB	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	85 °C	-40 C	Slide (Standard)	10	Gull Wing	Flush Recessed	2.54 mm	0.1 "	100 mA	Copper Alloy	3.7 mm	0.146 in	Gold	Surface Mount	6 V	SPST

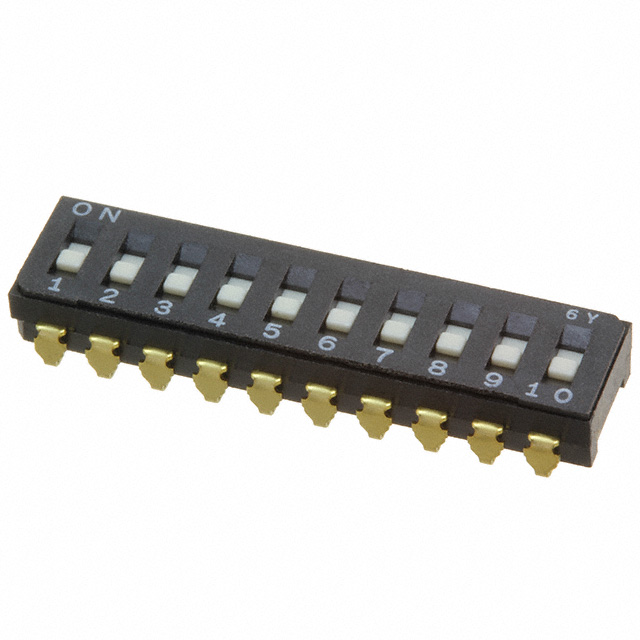

Nidec Components Corporation CFS-1001MA	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	85 °C	-40 C	Slide (Standard)	10	J Lead	Flush Recessed	2.54 mm	0.1 "	100 mA	Copper Alloy	3.9 mm	0.154 in	Gold	Surface Mount	6 V	SPST
Nidec Components Corporation CFS-1001TA	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	85 °C	-40 C	Slide (Standard)	10	J Lead	Flush Recessed	2.54 mm	0.1 "	100 mA	Copper Alloy	3.9 mm	0.154 in	Gold	Surface Mount	6 V	SPST

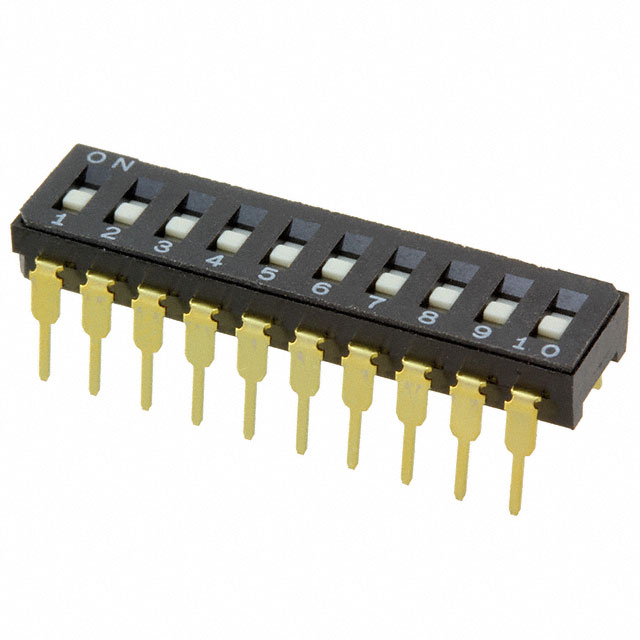

Nidec Components Corporation CFS-1001MC	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	85 °C	-40 C	Slide (Standard)	10	PC Pin	Flush Recessed	2.54 mm	0.1 "	100 mA	Copper Alloy	4.5 mm	0.177 in	Gold	Through Hole	6 V	SPST
