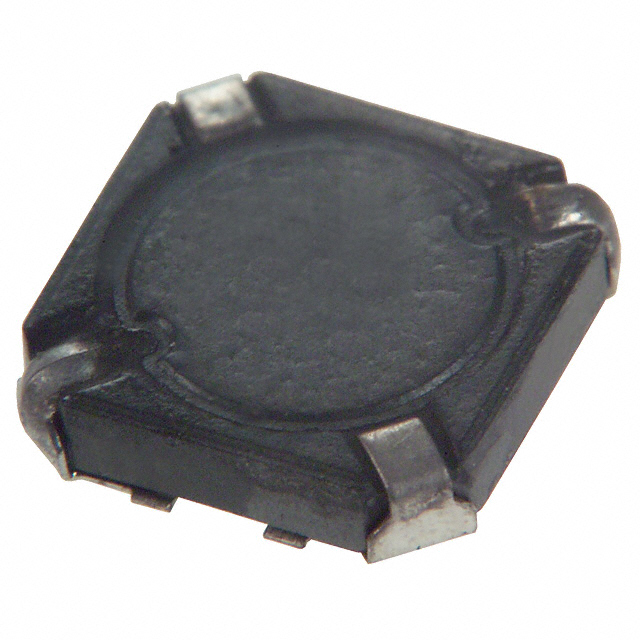

ELL-6GM Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 22UH 620MA 320MOHM SMD
| Part | Tolerance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Shielding | Package / Case | Type | Inductance | Mounting Type | DC Resistance (DCR) | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 20 % | 0.236 in | 6 mm | 0.236 in | 6 mm | 0.063 in | 1.6 mm | 0.62 A | Shielded | Nonstandard | Wirewound | 22 µH | Surface Mount | 320 mOhm | 100 kHz |
Panasonic Industrial Automation Sales | 30 % | 0.236 in | 6 mm | 0.236 in | 6 mm | 0.063 in | 1.6 mm | 1.05 A | Shielded | Nonstandard | Wirewound | 7.5 µH | Surface Mount | 110 mOhm | 100 kHz |
