ATA006 Series

Catalog

DC DC CONVERTER 0.8-5.5V 33W

Part	Package / Case	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Control Features	Efficiency	Applications	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]

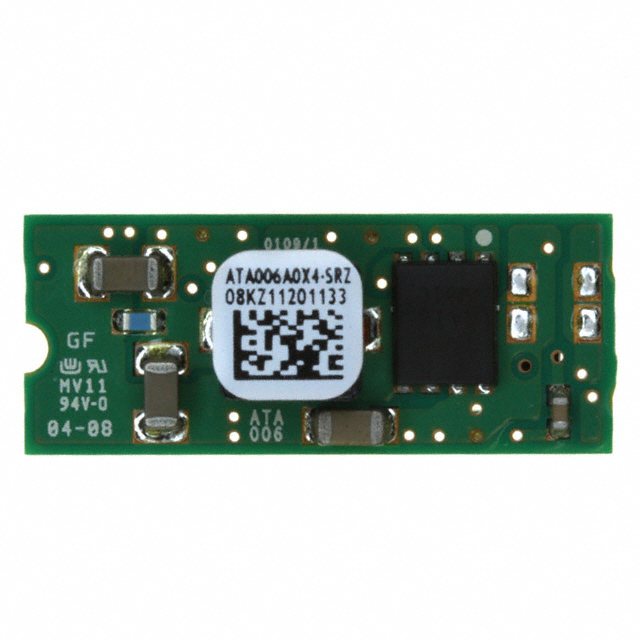

OmniOn Power™ ATA006A0X4-SRZ	6-SMD Module	0.8 V	5.5 V	14 V	1.1 in	7.2 mm	11.4 mm	0.29 in	27.9 mm	0.45 in	Active High Enable	89 %	ITE (Commercial)	33 W	Non-Isolated PoL Module	85 °C	-40 C	1	OCP OTP Remote On/Off UVLO	6 A	Surface Mount	8.3 V
OmniOn Power™ ATA006A0X4-SRZ	6-SMD Module	0.8 V	5.5 V	14 V	1.1 in	7.2 mm	11.4 mm	0.29 in	27.9 mm	0.45 in	Active High Enable	89 %	ITE (Commercial)	33 W	Non-Isolated PoL Module	85 °C	-40 C	1	OCP OTP Remote On/Off UVLO	6 A	Surface Mount	8.3 V

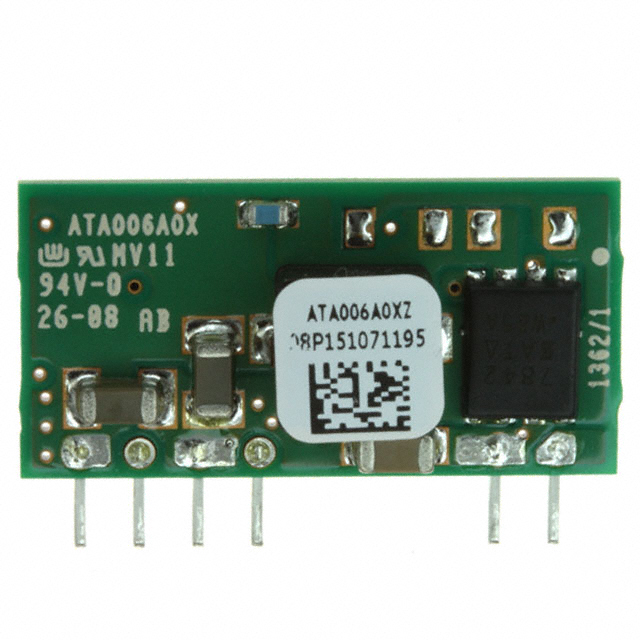

OmniOn Power™ ATA006A0XZ	6-SIP Module	0.8 V	5.5 V	14 V	1 in			0.5 in	25.4 mm	0.26 in	Active Low Enable	89 %	ITE (Commercial)	33 W	Non-Isolated PoL Module	85 °C	-40 C	1	OCP OTP Remote On/Off UVLO	6 A	Through Hole	8.3 V	12.7 mm	6.7 mm
OmniOn Power™ ATA006A0XZ	6-SIP Module	0.8 V	5.5 V	14 V	1 in			0.5 in	25.4 mm	0.26 in	Active Low Enable	89 %	ITE (Commercial)	33 W	Non-Isolated PoL Module	85 °C	-40 C	1	OCP OTP Remote On/Off UVLO	6 A	Through Hole	8.3 V	12.7 mm	6.7 mm
