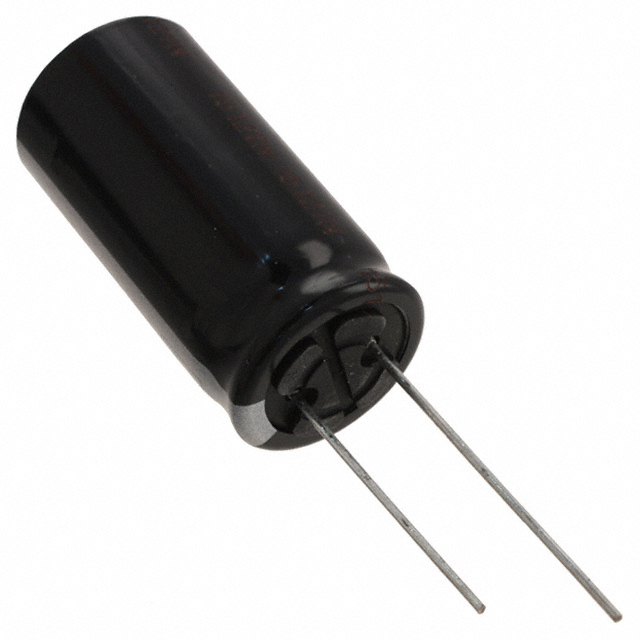

NHG Series

Manufacturer: Panasonic Electronic Components

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 100UF 63V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Capacitance	Polarization	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Ratings
Panasonic Electronic Components ECA-1JHG101	-55 C	105 ░C	2000 Hrs	General Purpose	0.531 in	13.5 mm	215 mA	100 µF	Polar	Through Hole	0.197 "	5 mm	20 %	63 V	0.394 in	10 mm	Can Radial	322.5 mA
Panasonic Electronic Components ECA-1HHG4R7B	-55 C	105 ░C	1000 Hrs	General Purpose	0.472 in		26 mA	4.7 µF	Polar	Through Hole	0.197 "	5 mm	20 %	50 VDC	0.197 in	5 mm	Can Radial	52 mA	12 mm
Panasonic Electronic Components ECA-1HHG331I	-55 C	105 ░C	2000 Hrs	General Purpose		17 mm	410 mA	330 µF	Polar	Through Hole	0.098 in	2.5 mm	20 %	50 VDC	0.394 in	10 mm	Can Radial	615 mA		0.669 "
Panasonic Electronic Components ECA-2GHG330	-25 °C	105 ░C	2000 Hrs	General Purpose	1.063 in	27 mm		33 ÁF	Polar	Through Hole	0.295 in	7.5 mm	20 %	400 V	0.63 in	16 mm	Can Radial	292.5 mA
Panasonic Electronic Components ECA-1HHG330	-55 C	105 ░C	1000 Hrs	General Purpose	0.472 in		90 mA	33 ÁF	Polar	Through Hole	0.079 in	2 mm	20 %	50 VDC	0.197 in	5 mm	Can Radial	180 mA	12 mm
Panasonic Electronic Components ECA-1HHG331C	-55 C	105 ░C	2000 Hrs	Automotive		17 mm	410 mA	330 µF	Polar	Through Hole	0.197 "	5 mm	20 %	50 VDC	0.394 in	10 mm	Can Radial	615 mA		0.669 "	AEC-Q200
Panasonic Electronic Components ECA-1VHG331B	-55 C	105 ░C	2000 Hrs	General Purpose	0.531 in	13.5 mm	350 mA	330 µF	Polar	Through Hole	0.197 "	5 mm	20 %	35 V	0.394 in	10 mm	Can Radial	525 mA
Panasonic Electronic Components ECA-2EHG470B	-25 °C	105 ░C	2000 Hrs	General Purpose	1.063 in	27 mm	230 mA	47 µF	Polar	Through Hole	0.197 "	5 mm	20 %	250 V	0.492 in	12.5 mm	Can Radial	345 mA
Panasonic Electronic Components ECA-1EHG471	-55 C	105 ░C	2000 Hrs	General Purpose	0.531 in	13.5 mm	380 mA	470 µF	Polar	Through Hole	0.197 "	5 mm	20 %	25 VDC	0.394 in	10 mm	Can Radial	570 mA
Panasonic Electronic Components ECA-1AHG682	-55 C	105 ░C	2000 Hrs	General Purpose	1.063 in	27 mm	1.57 A	6800 µF	Polar	Through Hole	0.295 in	7.5 mm	20 %	10 V	0.63 in	16 mm	Can Radial	1.806 A
