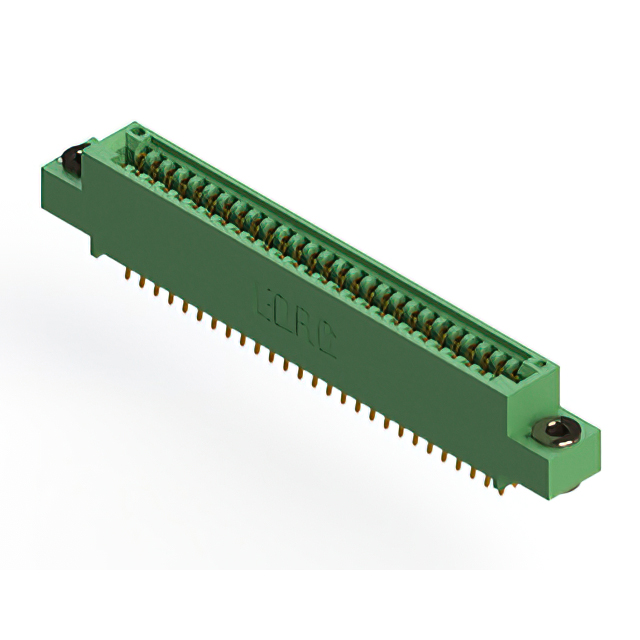

845-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 54POS 0.100

...

Part	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Number of Positions/Bay/Row	Number of Positions	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Card Type	Termination Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material - Insulation	Pitch	Pitch	Termination Rows [custom]	Number of Rows [custom]

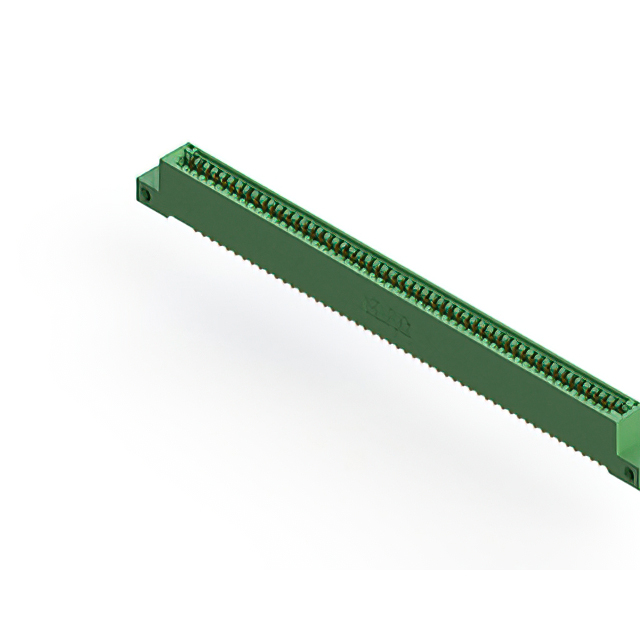

EDAC Inc. 845-054-500-112	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	54	54	Single	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Non Specified - Single Edge	1	Through Hole	125 °C	-40 C	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm

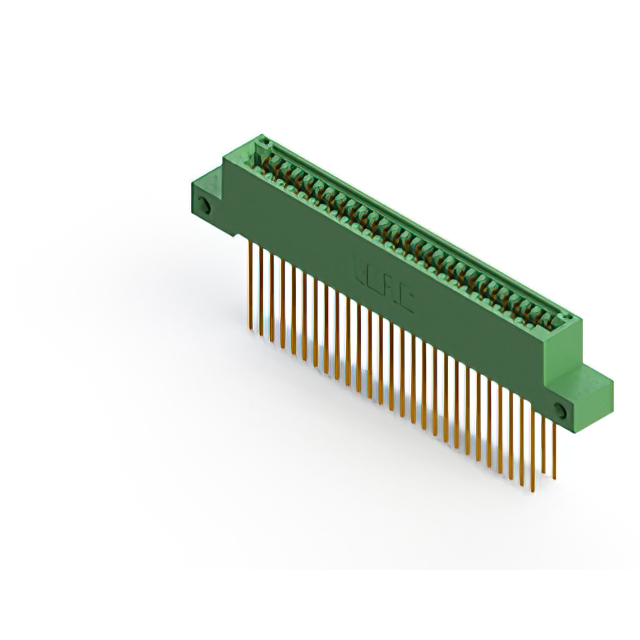

EDAC Inc. 845-054-541-212	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	27	54	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Non Specified - Dual Edge		Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2

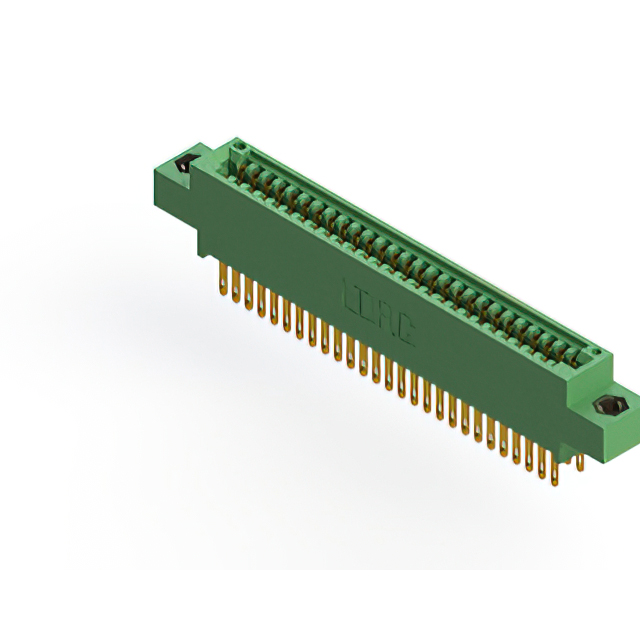

EDAC Inc. 845-054-500-807	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	27	54	Dual	M3 Threaded Insert Top Mount Opening			Female	Non Specified - Dual Edge		Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2

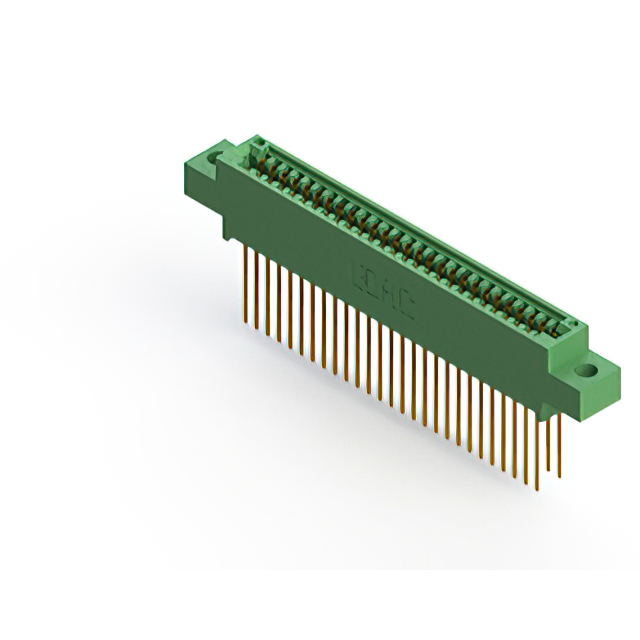

EDAC Inc. 845-054-542-804	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	27	54	Dual		0.156 "	3.96 mm	Female	Non Specified - Dual Edge		Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2
EDAC Inc. 845-054-524-408	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder	Copper Alloy	54	54	Single	4-40 Threaded Insert Top Mount Opening			Female	Non Specified - Single Edge	1	Through Hole	125 °C	-40 C	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm

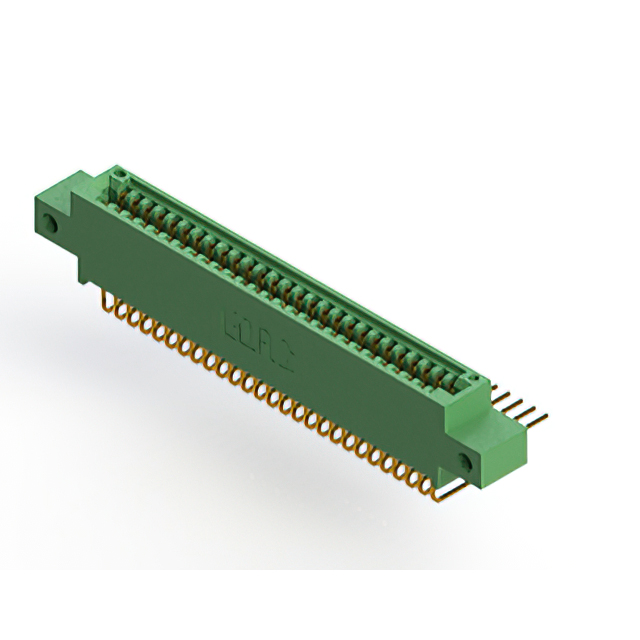

EDAC Inc. 845-054-559-812	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder	Copper Alloy	27	54	Dual	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Female	Non Specified - Dual Edge		Right Angle Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2

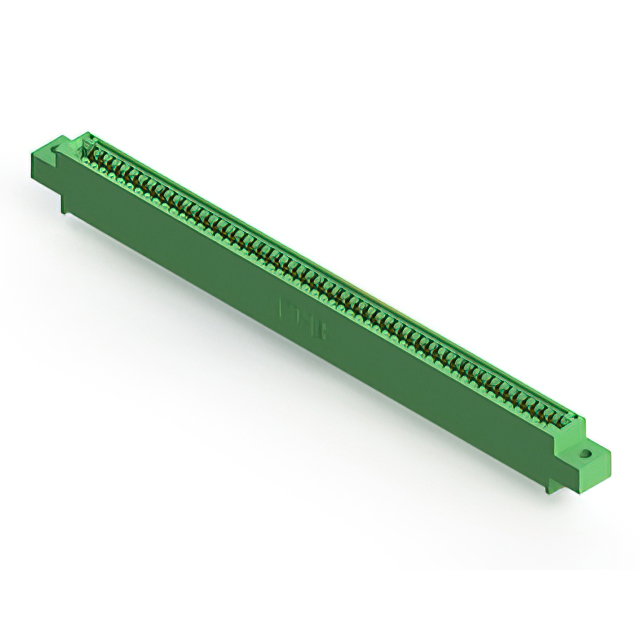

EDAC Inc. 845-054-525-602	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder	Copper Alloy	54	54	Single		0.128 "	3.25 mm	Female	Non Specified - Single Edge	1	Through Hole	125 °C	-40 C	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm
EDAC Inc. 845-054-524-403	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder	Copper Alloy	54	54	Single	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Non Specified - Single Edge	1	Through Hole	125 °C	-40 C	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm

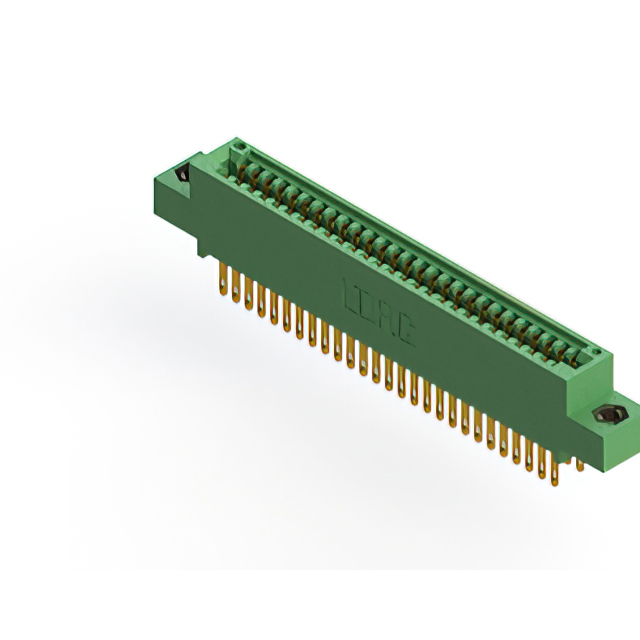

EDAC Inc. 845-054-500-507	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	27	54	Dual	M3 Threaded Insert Top Mount Opening			Female	Non Specified - Dual Edge		Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2

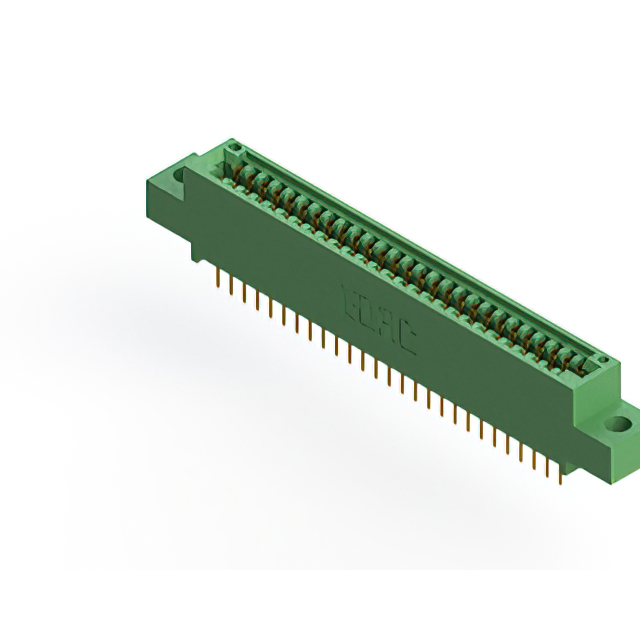

EDAC Inc. 845-054-524-504	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Solder	Copper Alloy	27	54	Dual		0.156 "	3.96 mm	Female	Non Specified - Dual Edge		Through Hole	125 °C	-40 C		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	2
