3271 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

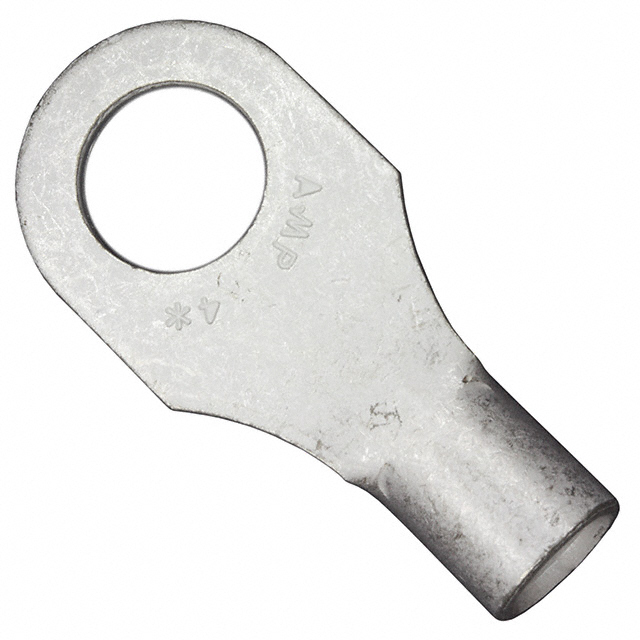

CONN RING D-SHAPE 4AWG #1/2
| Part | Mounting Type | Contact Finish | Contact Material | Stud/Tab Size | Insulation | Thickness | Thickness | Features | Wire Gauge | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Terminal Type | Length - Overall | Length - Overall | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Color | Material - Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Overall [x] | Length - Overall [x] | Accessory Type | Body Finish | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Tin | Copper | 1/2 Stud | Non-Insulated | 1.78 mm | 0.07 in | Brazed Seam Serrated Termination | 4 AWG | 22.23 mm | 0.875 in | Crimp | D-Shaped | 1.902 in | 48.31 mm | ||||||||||||||||
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Tin | Copper | Insulated | 0.79 mm | 0.031 in | Serrated Termination | Crimp | Circular | 22 AWG | 16 AWG | 4.06 mm | 0.16 in | 1 Stud | Red | Nylon Polyamide (PA) | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 0.643 in | 16.33 mm | |||||||||
TE Connectivity Raychem Cable Protection | Shielded | Violet | Ferrule | Zinc | Copper |
