882-70 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER R/A 44POS 2MM

Part	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Number of Rows [custom]	Connector Type	Material Flammability Rating	Number of Positions	Insulation Material	Voltage Rating	Fastening Type	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Type	Shrouding	Overall Contact Length	Overall Contact Length

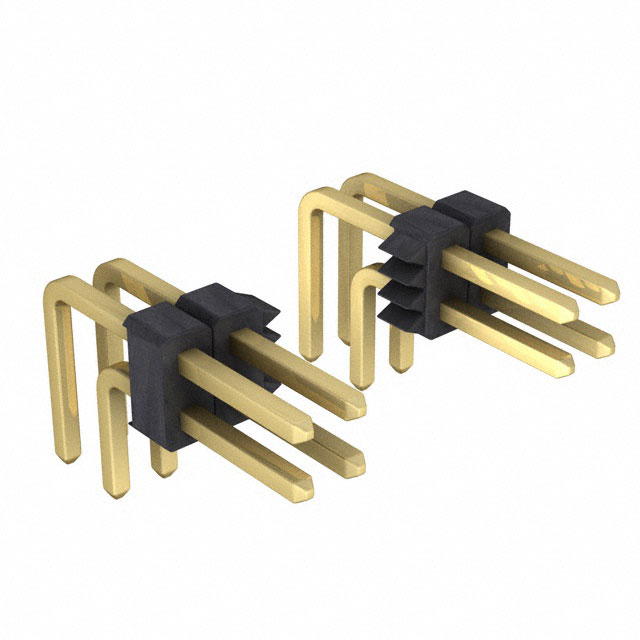

Preci-Dip 882-70-044-20-001101	Flash	4 mm	0.157 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Right Angle Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	44	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded
Preci-Dip 882-70-078-20-001101	Flash	4 mm	0.157 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Right Angle Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	78	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded
Preci-Dip 882-70-026-20-001101	Flash	4 mm	0.157 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Right Angle Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	26	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded
Preci-Dip 882-70-074-20-001101	Flash	4 mm	0.157 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Right Angle Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	74	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded

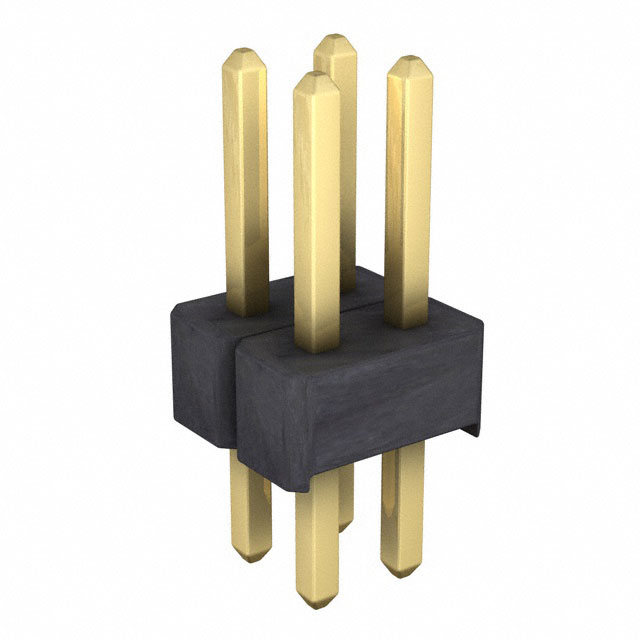

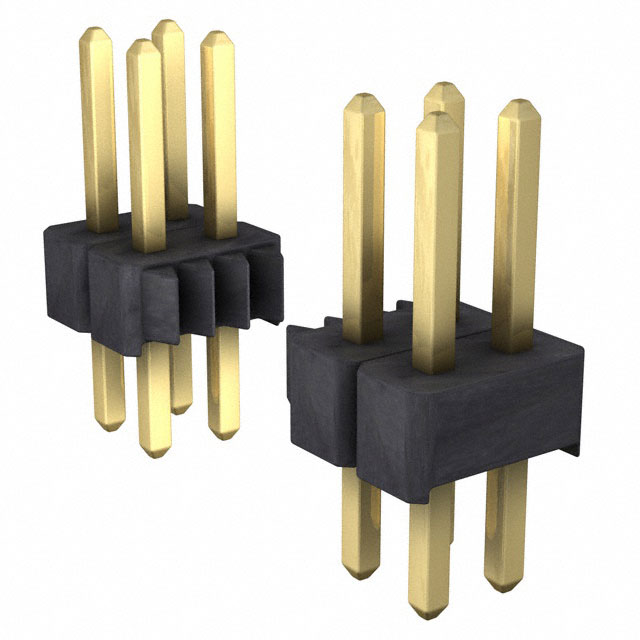

Preci-Dip 882-70-004-10-001101	Flash	2 mm	0.079 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	4	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded	8.8 mm	0.346 in
Preci-Dip 882-70-072-20-001101	Flash	4 mm	0.157 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Right Angle Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	72	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded
Preci-Dip 882-70-026-10-001101	Flash	2 mm	0.079 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	26	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded	8.8 mm	0.346 in
Preci-Dip 882-70-056-10-001101	Flash	2 mm	0.079 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	56	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded	8.8 mm	0.346 in
Preci-Dip 882-70-032-10-001101	Flash	2 mm	0.079 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0		Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded	8.8 mm	0.346 in
Preci-Dip 882-70-046-10-001101	Flash	2 mm	0.079 in	Gold	-55 C	125 °C	Solder	All	0.11 in	2.79 mm	4 mm	0.157 in	0.079 "	2 mm	Through Hole	Flash	Gold	Brass	2	Header	UL94 V-0	46	Glass Filled Nylon Polyamide (PA)	150 VDC	Push-Pull	Black	2 mm	0.079 in	Square	Male Pin	Unshrouded	8.8 mm	0.346 in
