2385344 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

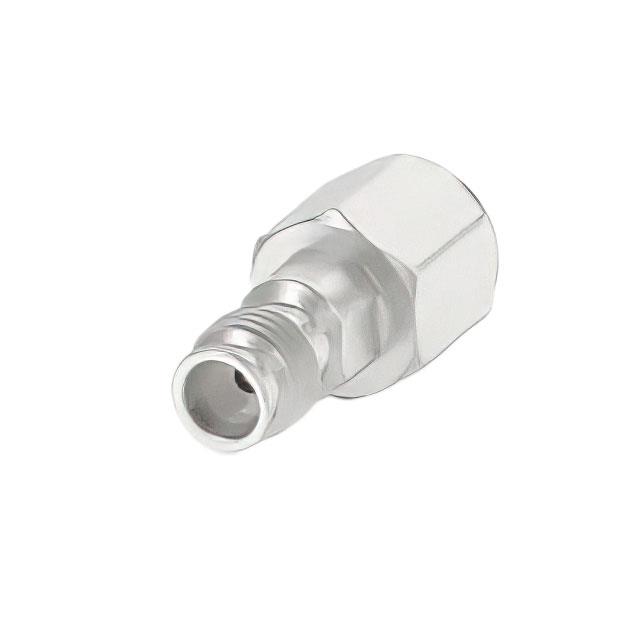

1.35MM MALE TO 1.35MM FEMALE ADA
| Part | Mating Cycles | Frequency - Max [Max] | Adapter Series [Min] | Adapter Series [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Conversion Type | Body Material | Adapter Type | Dielectric Material | Convert To (Adapter End) | Center Contact Material | Style | Convert From (Adapter End) | Impedance | Mounting Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 | 90 GHz | 1.35 mm | 1.35 mm | 85 °C | -40 °C | Same Series | Stainless Steel | Plug to Jack | Polyetheretherketone (PEEK) | 1.35mm Plug Male Pin | Beryllium Copper | Straight | 1.35mm Jack Female Socket | 50 Ohms | Free Hanging (In-Line) | Gold |
