D459 Series
Manufacturer: ZF Electronics
Beta
⌘K

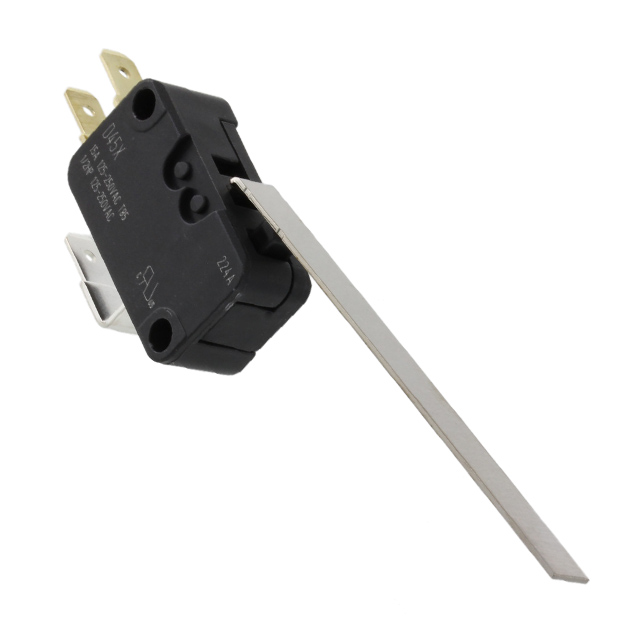

SWITCH SNAP ACTION SPDT 16A 250V
| Part | Features | Overtravel [custom] | Overtravel [custom] | Actuator Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position | Differential Travel | Differential Travel | Voltage Rating - AC | Electrical Life | Circuit | Operating Force | Release Force | Switch Function | Termination Style | Pretravel | Pretravel | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | Explosion Proof | 0.312 " | 7.9 mm | Lever Straight | 16 A | 85 °C | -40 C | 0.6 in | 15.2 mm | 0.098 in | 2.5 mm | 250 V | 50000 Cycles | SPDT | 13 gf | 3.059 gf | On-Mom | Quick Connect | 12.7 mm | 0.5 " | Chassis Mount |
