VLRK31 Series

Catalog

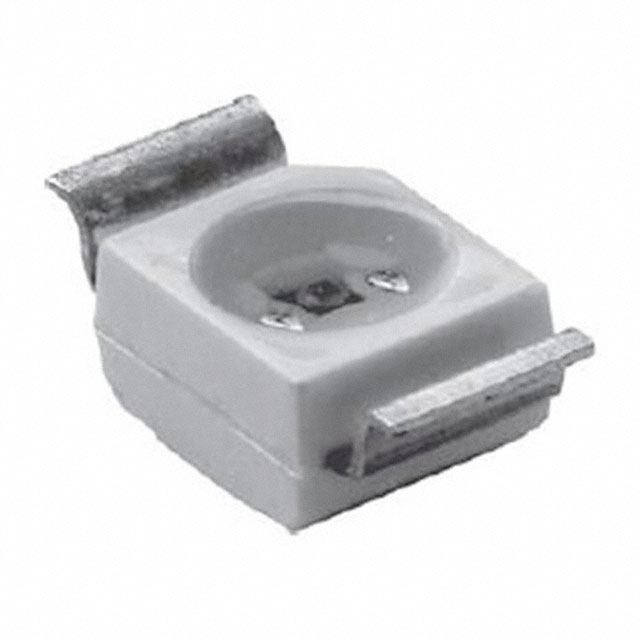

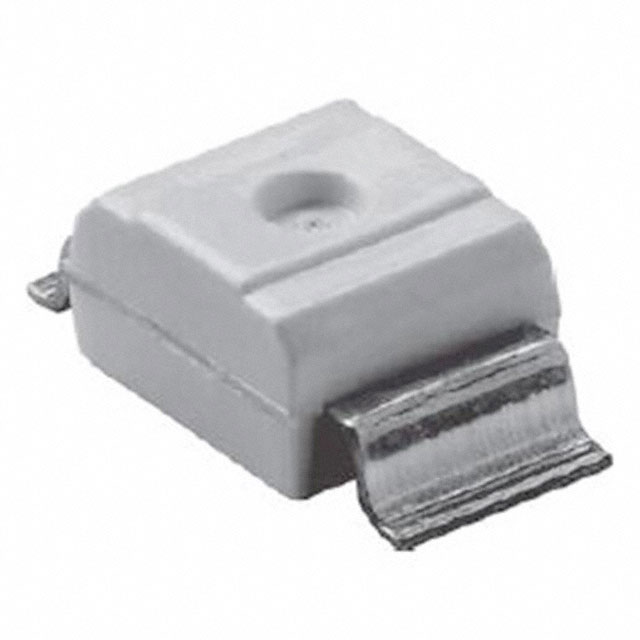

LED RED CLEAR SMD BOTTOM ENT

Part	Mounting Type	Wavelength - Dominant	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Lens Style	Lens Size [diameter]	Supplier Device Package	Current - Test	Lens Transparency	Height (Max) [z]	Millicandela Rating	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]
Vishay Semiconductor Opto Division VLRK31Q2R1-GS08	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	115 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
Vishay Semiconductor Opto Division VLRK31R1S2-GS08	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	199 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
Vishay Semiconductor Opto Division VLRK31Q1R2-GS18	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	126 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
Vishay Semiconductor Opto Division VLRK31Q1R2-GS08	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	126 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
Vishay Semiconductor Opto Division VLRK31R1S2-GS18	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	199 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
Vishay Semiconductor Opto Division VLRK31Q2R1-GS18	Surface Mount Bottom Entry	630 nm	643 nm	2.1 V	120 °	Standard	Round with Flat Top	2.4 mm Dia	SMD	20 mA	Clear	2.1 mm	115 mcd	2-SMD Z-Bend	Red	2.8 mm	3.2 mm
