1214A Series
Manufacturer: Belden Inc.
Beta
⌘K

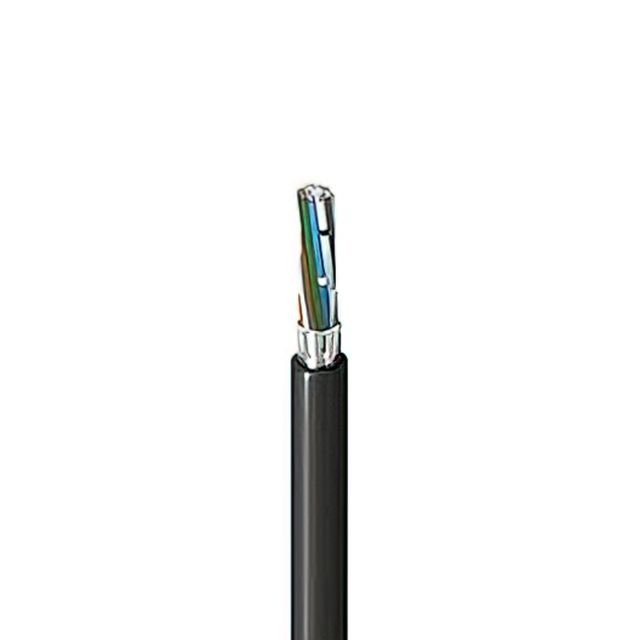

CABLE 16 COND 26AWG BLACK
| Part | Shield Coverage | Shield Material | Number of Conductors | Shield Type | Features | Voltage | Cable Type | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Conductor Strand [x] | Conductor Strand [x] | Usage | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Material | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 16 | Foil | Drain Wire | 300 VDC | Multi-Conductor | UL Style 2464 | 80 °C | -20 ░C | 0.035 in | 0.889 mm | 304.8 m | 1000 ft | 34 AWG | 7 | Instrumentation | Black | Poly-Vinyl Chloride (PVC) | 26 AWG | 0.301 in | 7.65 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) |
