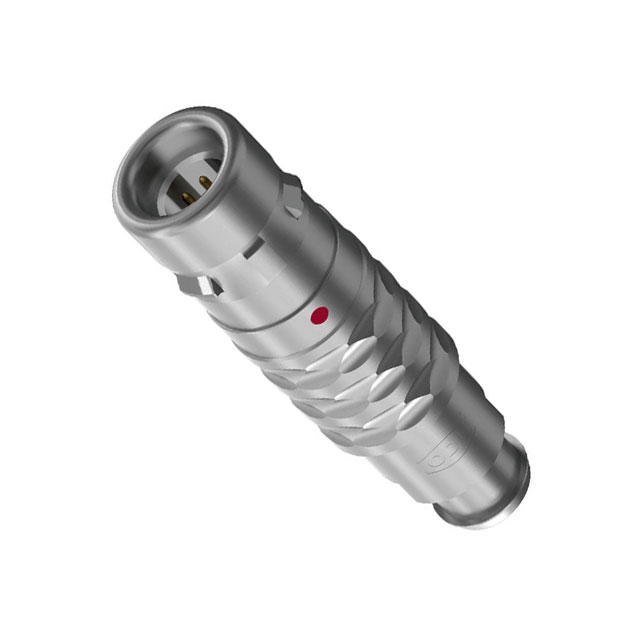

S20K0C-P Series

Manufacturer: ODU

Catalog

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Material	Fastening Type	Features	Current Rating (Amps)	Shell Finish	Contact Finish - Mating	Insert Material	Backshell Material, Plating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Ingress Protection	Connector Type	Shell Material	Number of Positions	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Shielding	Mounting Type	Primary Material	Voltage Rating	Termination
ODU S20K0C-P05MFG0-300S	Brass	Push-Pull	Backshell Strain Relief	7.5 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	5	0.098 in	0.118 "	3 mm	2.5 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P07MCC0-500S	Brass	Push-Pull	Backshell Strain Relief	4 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	7	0.177 in	0.197 in	5 mm	4.5 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P04PFG0-350S	Brass	Push-Pull	Backshell Strain Relief	7.5 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	4	0.118 in	0.138 in	3.5 mm	3 mm	Shielded	Free Hanging (In-Line)	Metal	300 VDC	Crimp
ODU S20K0C-P02MJG0-350S	Brass	Push-Pull	Backshell Strain Relief	7.5 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	2	0.118 in	0.138 in	3.5 mm	3 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P10MCC9-350S	Brass	Push-Pull	Backshell Strain Relief	4 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	10	0.118 in	0.138 in	3.5 mm	3 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P09MCC0-350S	Brass	Push-Pull	Backshell Strain Relief	4 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	9	0.118 in	0.138 in	3.5 mm	3 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P05MFG0-500S	Brass	Push-Pull	Backshell Strain Relief	7.5 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	5	0.177 in	0.197 in	5 mm	4.5 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P06MCC0-200S	Brass	Push-Pull	Backshell Strain Relief	4 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	6	0.059 "	0.079 "	2 mm	1.5 mm	Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P03MJG0-250S	Brass	Push-Pull	Backshell Strain Relief	7.5 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass		0.079 in 2 mm	0.098 in 2.5 mm			Shielded	Free Hanging (In-Line)	Metal
ODU S20K0C-P07LCC0-350S	Brass	Push-Pull	Backshell Strain Relief	4 A	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Silver	120 °C	-40 C	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Plug Male Pins	Brass	7	0.118 in	0.138 in	3.5 mm	3 mm	Shielded	Free Hanging (In-Line)	Metal	300 VDC
