95104 Series

Catalog

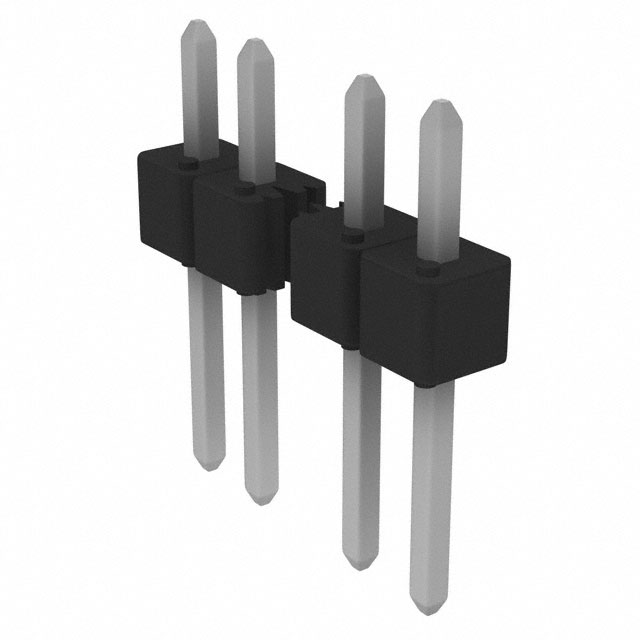

CONN HEADER VERT 36POS 2.54MM

Part	Number of Rows	Shrouding	Number of Positions Loaded	Contact Material	Mounting Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Material Flammability Rating	Contact Finish - Post
Amphenol ICC (FCI) 95104-436H	1	Unshrouded	All	Phosphor Bronze	Through Hole	0.1 in	2.54 mm	0.144 in	3.66 mm	2.54 çm	100 çin	Push-Pull	0.37 in	9.4 mm	Black	36	3.2 mm	0.126 in	Header	Solder	0.1 in	2.54 mm	Male Pin	Square	UL94 V-0
Amphenol ICC (FCI) 95104-405HLF	1	Unshrouded	All	Phosphor Bronze	Through Hole	0.1 in	2.54 mm	0.144 in	3.66 mm	2.54 çm	100 çin	Push-Pull	0.37 in	9.4 mm	Black		3.2 mm	0.126 in	Header	Solder	0.1 in	2.54 mm	Male Pin	Square	UL94 V-0	Tin
