851-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 10POS 0.05 GOLD SMD

...

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Positions	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height [z]	Fastening Type	Termination	Number of Rows	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Current Rating (Amps)	Insulation Height [z]

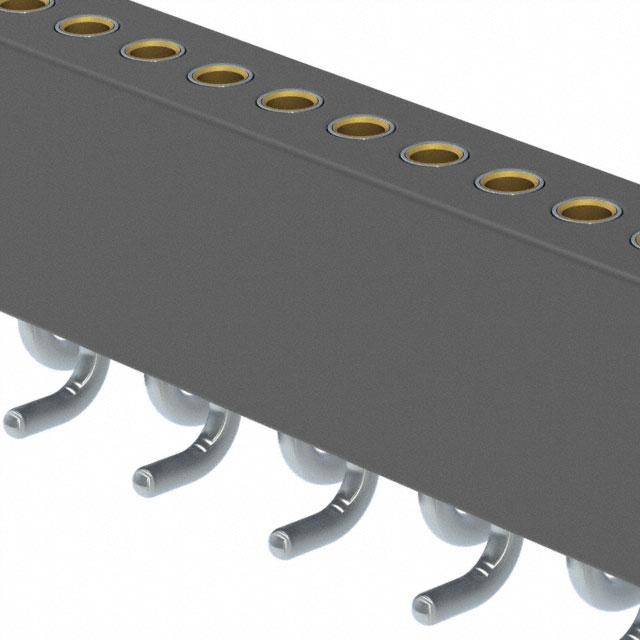

Mill-Max Manufacturing Corp. 851-91-010-30-002000	Nylon 4/6 Polyamide (PA46)	Circular	200 µin	5.08 µm	Brass Alloy	10	All	Surface Mount	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	3.78 mm	0.149 in	Push-Pull	Solder	1	Black

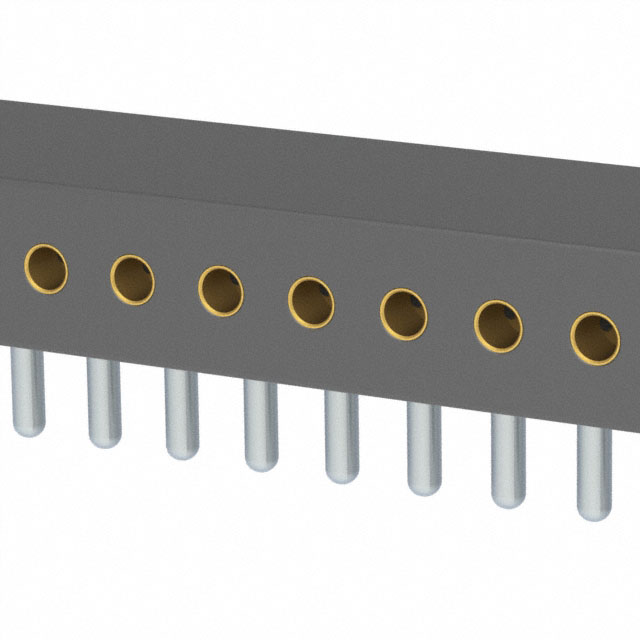

Mill-Max Manufacturing Corp. 851-91-018-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	18	All	Right Angle Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	2.2 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.118 in	3 mm	0.087 "	3 A

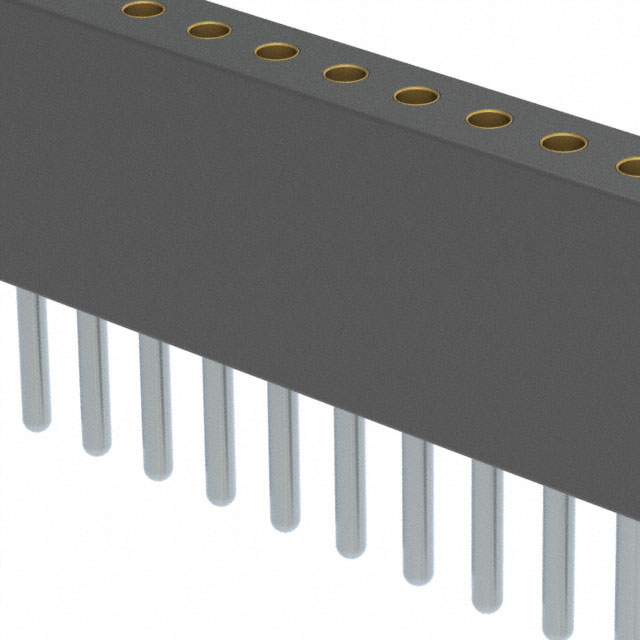

Mill-Max Manufacturing Corp. 851-91-018-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	18	All	Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket		0.185 in	Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.115 in	2.92 mm		3 A	4.7 mm
Mill-Max Manufacturing Corp. 851-91-027-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	27	All	Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket		0.185 in	Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.115 in	2.92 mm		3 A	4.7 mm

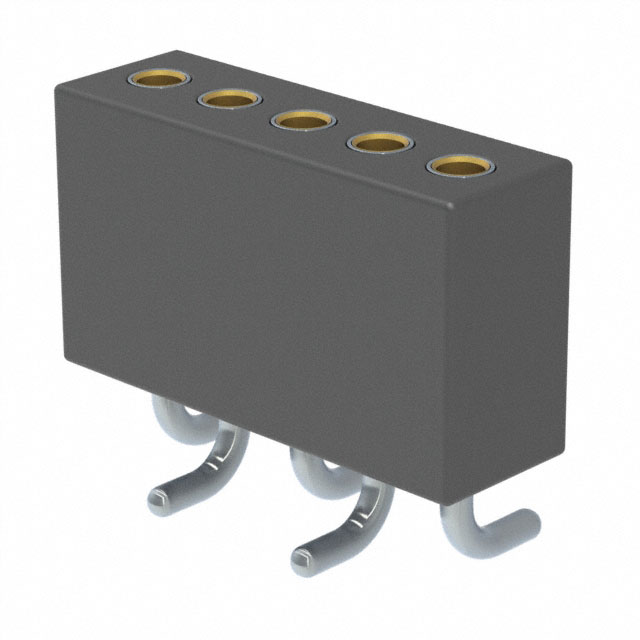

Mill-Max Manufacturing Corp. 851-91-005-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	5	All	Surface Mount	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	5.25 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0			0.207 in	3 A
Mill-Max Manufacturing Corp. 851-91-044-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	44	All	Right Angle Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	2.2 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.118 in	3 mm	0.087 "	3 A

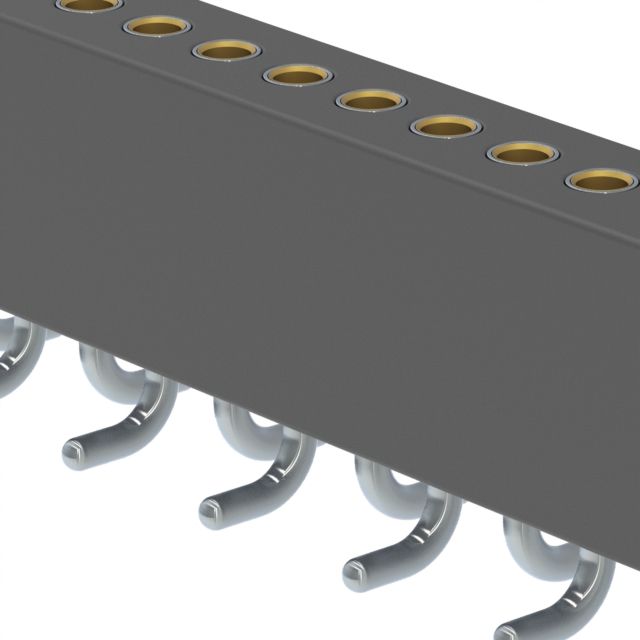

Mill-Max Manufacturing Corp. 851-91-035-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	35	All	Surface Mount	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	5.25 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0			0.207 in	3 A
Mill-Max Manufacturing Corp. 851-91-049-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	49	All	Surface Mount	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	5.25 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0			0.207 in	3 A

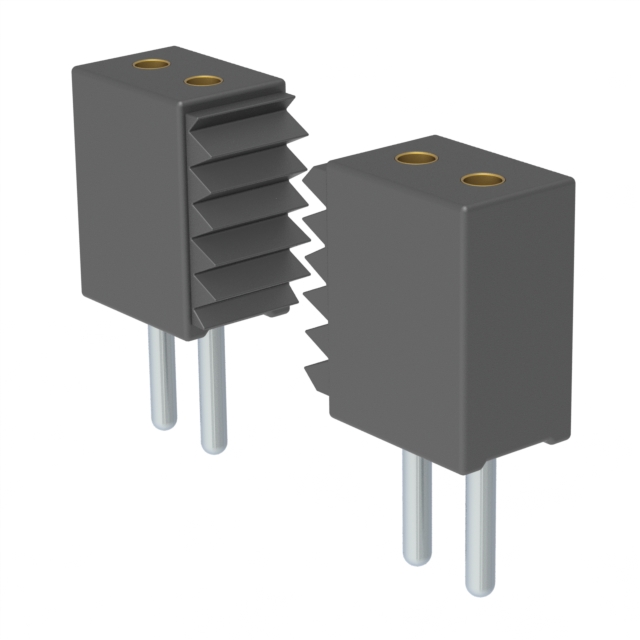

Mill-Max Manufacturing Corp. 851-91-045-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	45	All	Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket		0.161 in	Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.099 in	2.51 mm		3 A	4.1 mm
Mill-Max Manufacturing Corp. 851-91-020-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	20	All	Right Angle Through Hole	Gold	Receptacle	1.27 mm	0.05 in	Tin-Lead	0.25 µm	10 µin	Female Socket	2.2 mm		Push-Pull	Solder	1	Black	-55 C	125 °C	UL94 V-0	0.118 in	3 mm	0.087 "	3 A
